THE VSC NORTH STAR FIELD TRIPOD COMPONENT SCHEMATICS

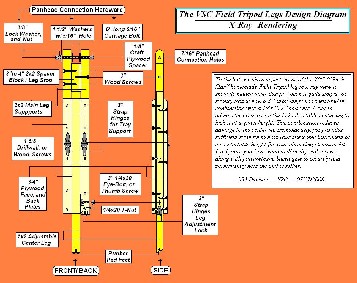

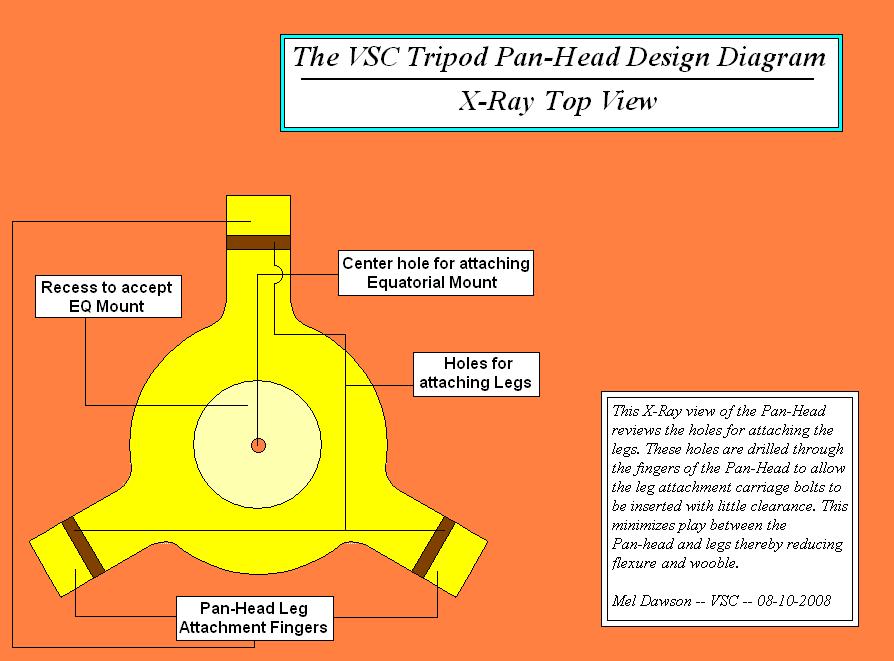

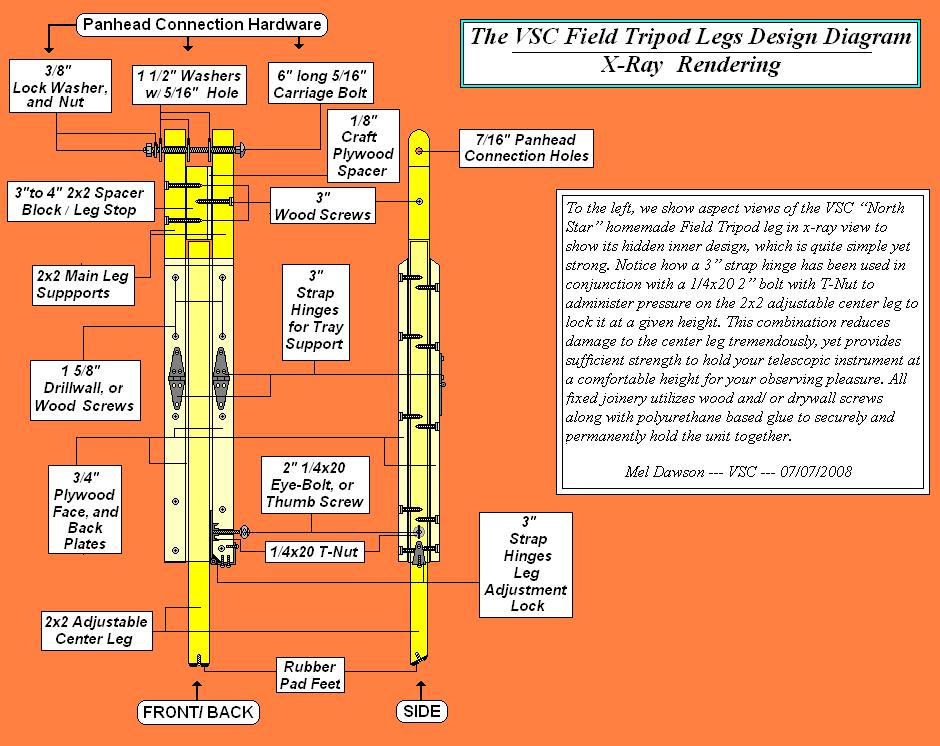

The VSC North Star Field Tripod Legs (X-Ray View) The VSC North Star Field Tripod Legs (Opaque View) The VSC North Star Field Pan-Head (X-Ray Top-View) The VSC North Star Field Pan-Head (Opaque Top-View)

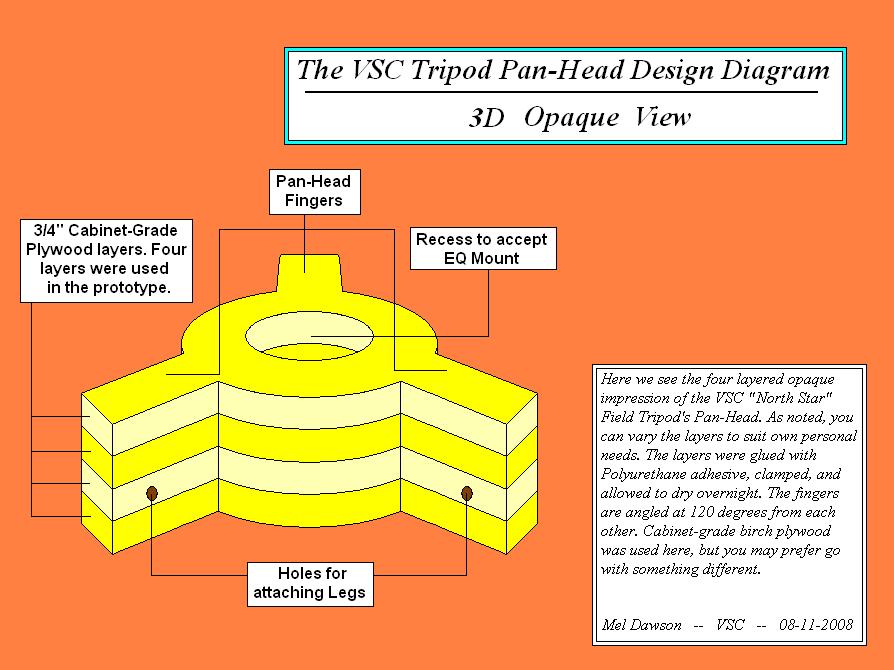

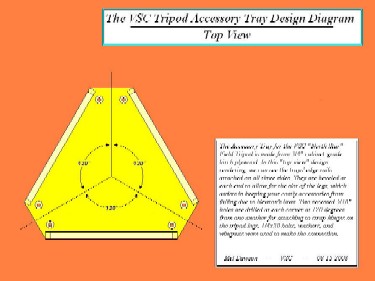

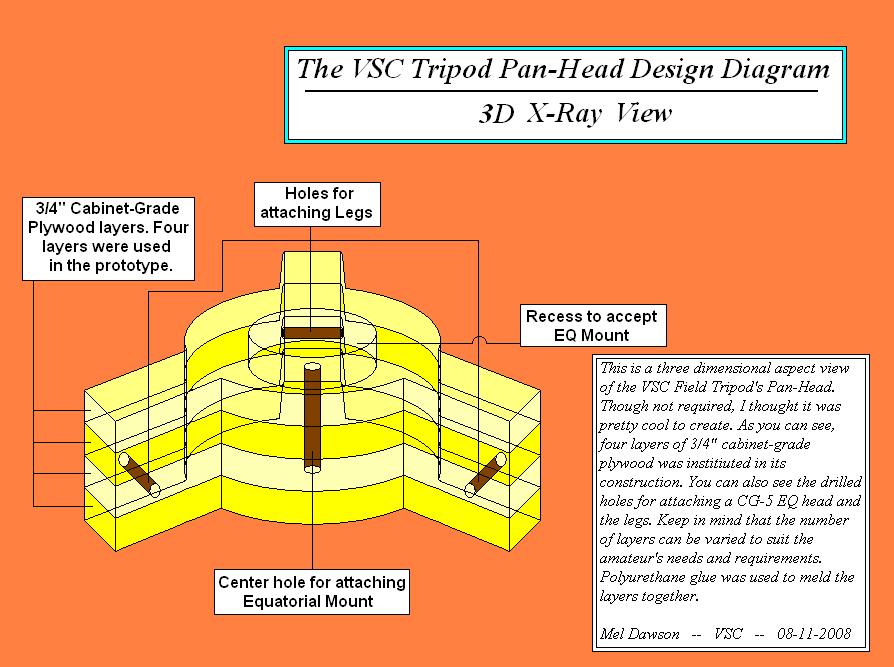

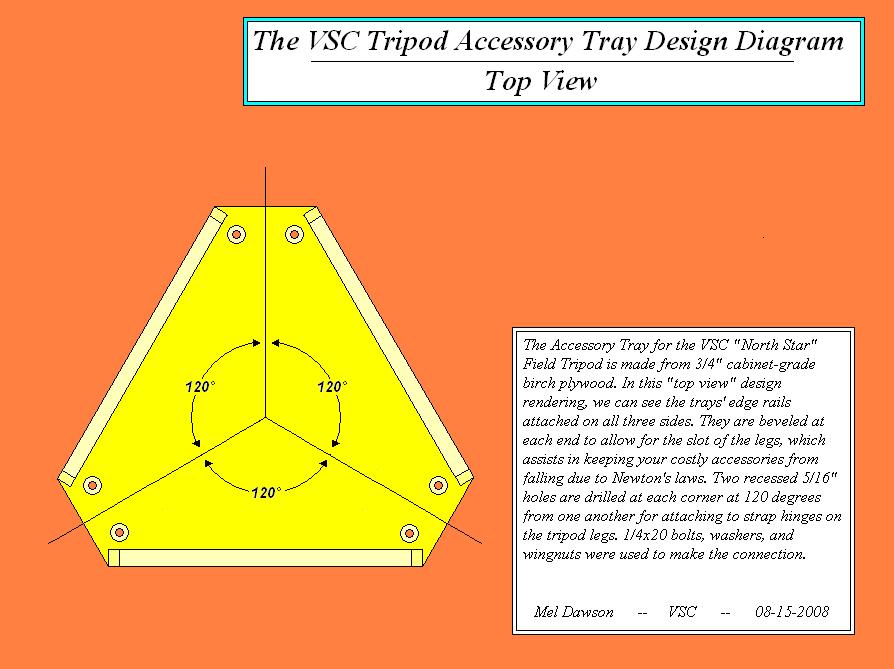

The VSC North Star Field Pan-Head (X-Ray 3D-View) The VSC North Star Field Pan-Head (Opaque 3D-View) The VSC North Star Field Accessory Tray (Top View) The VSC North Star Field Pan-Head (Angled View)

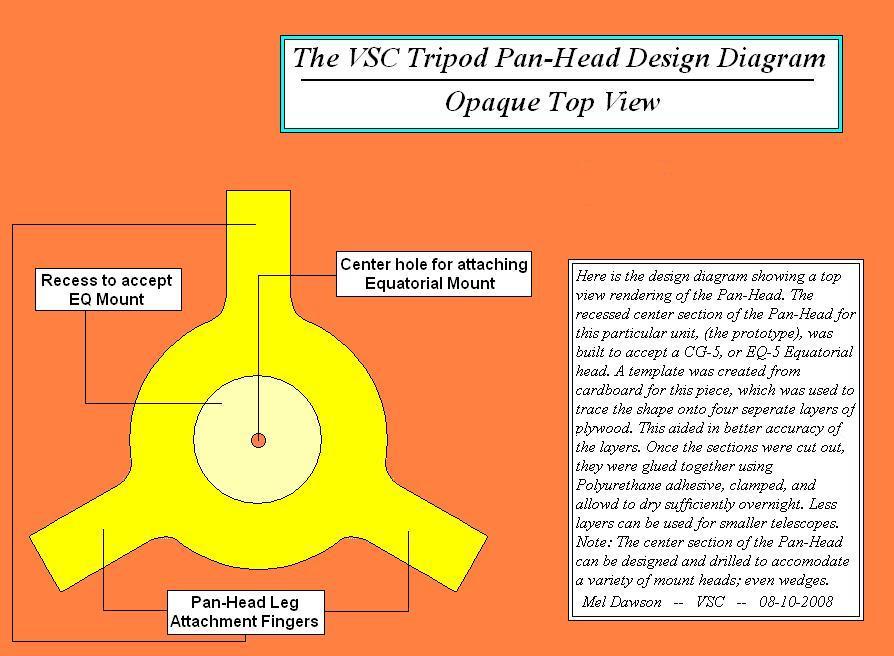

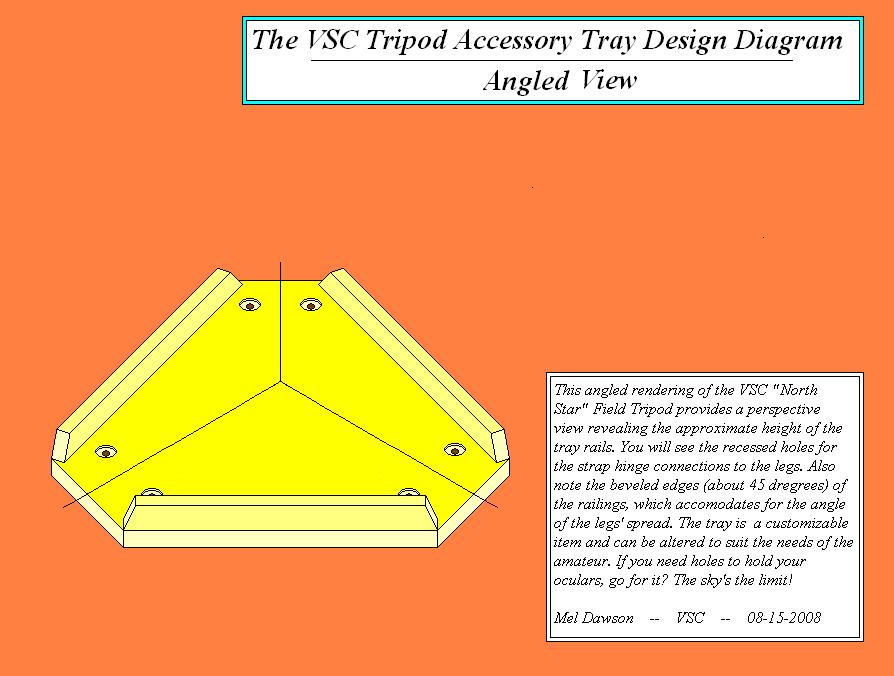

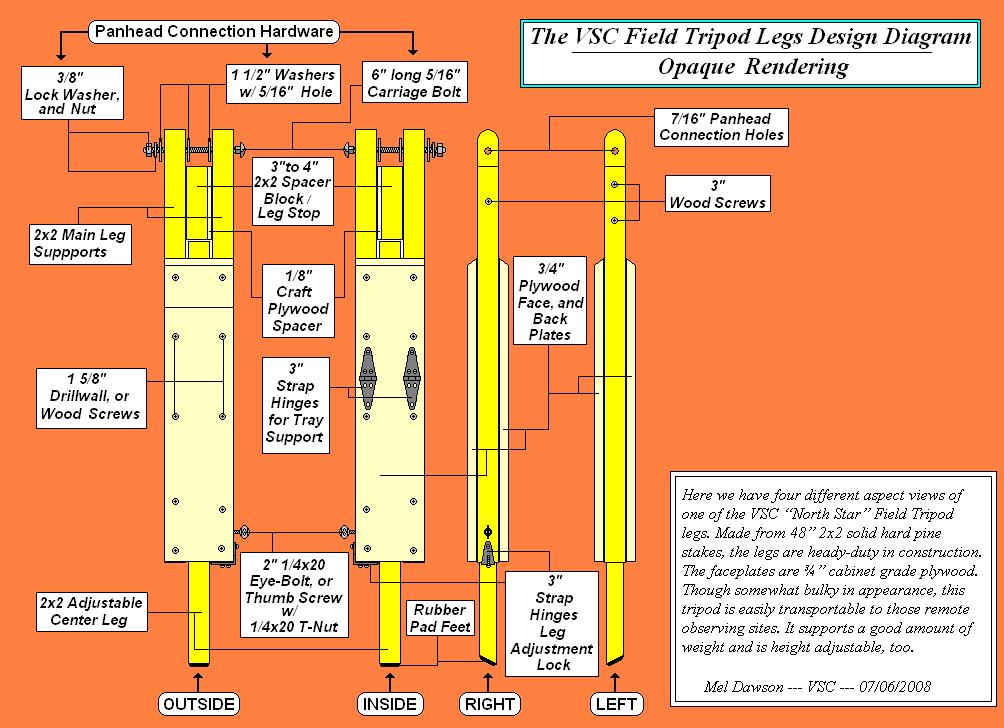

On this page, we are hosting several opaque and x-ray design diagrams illustrating the parts that make-up the Vega Sky Center's "North Star" Field Tripod as constructed by Mel Dawson. Measurements have not been added to allow you to vary the dimensions of the individual components that make up the mount yourself. Please click on any specific design diagram of interest above to display an enlarged rendering. If you have any questions, please feel free to contact us at:
