Jaegers 6" f/10 "GJD" OTA Construction - OTA Assembly (ProtoStar wrapped baffle rack - 2)

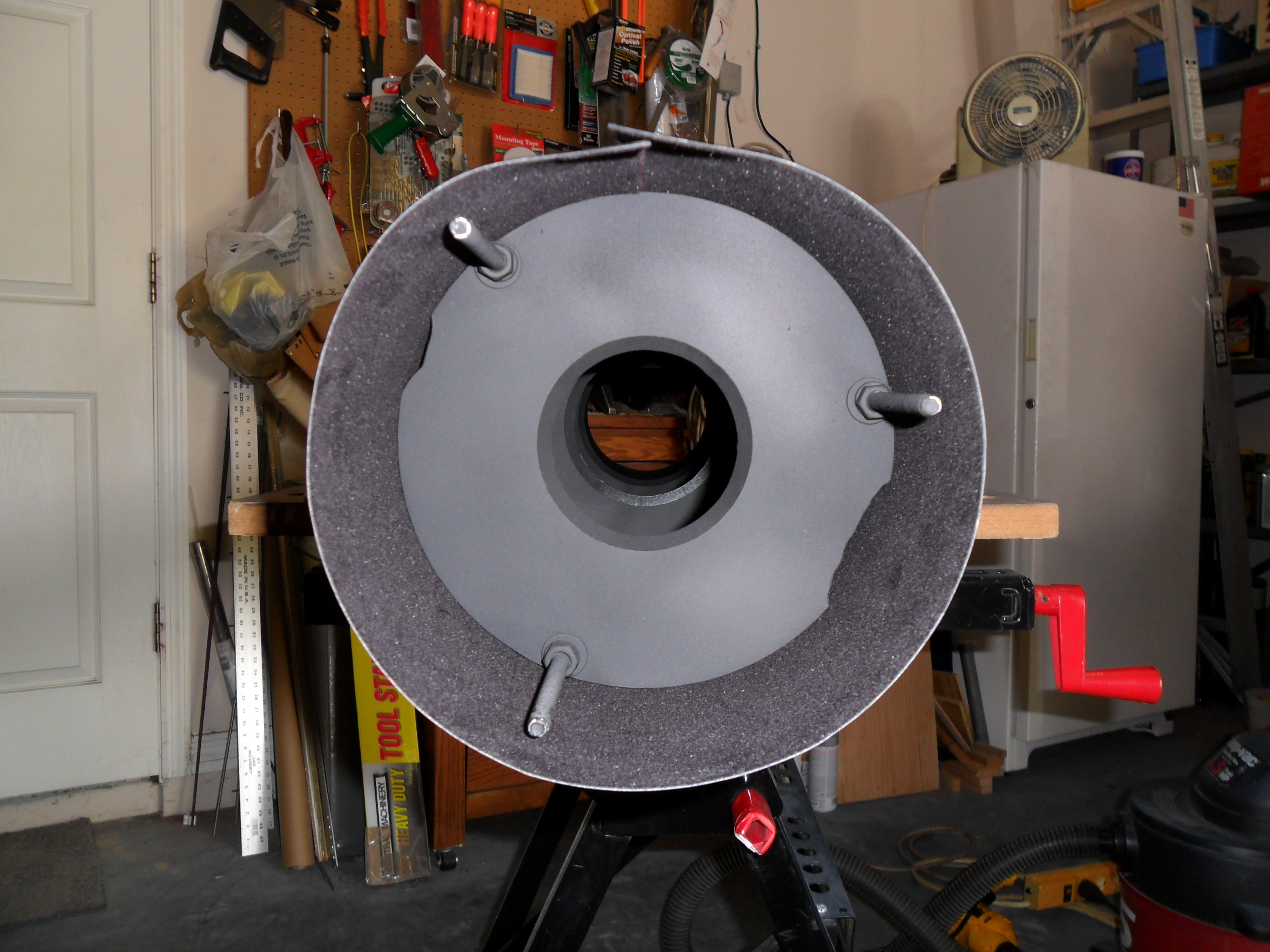

ProtoStar flock material wrapped around Baffle Rack ready to be installed in Main Tube - a look from the rear end - 2 (Click to see an enlarged image.)


This is a view of the ProtoStar FlockBoard wrapped baffle rack looking down the center from the focuser end. The flocking material was wrapped in a manner that will precisely position the baffle rack at the correct location within the main tube once installed; with the flocking material's focuser end edge recessed into the main tube by 3/4" (.750").
