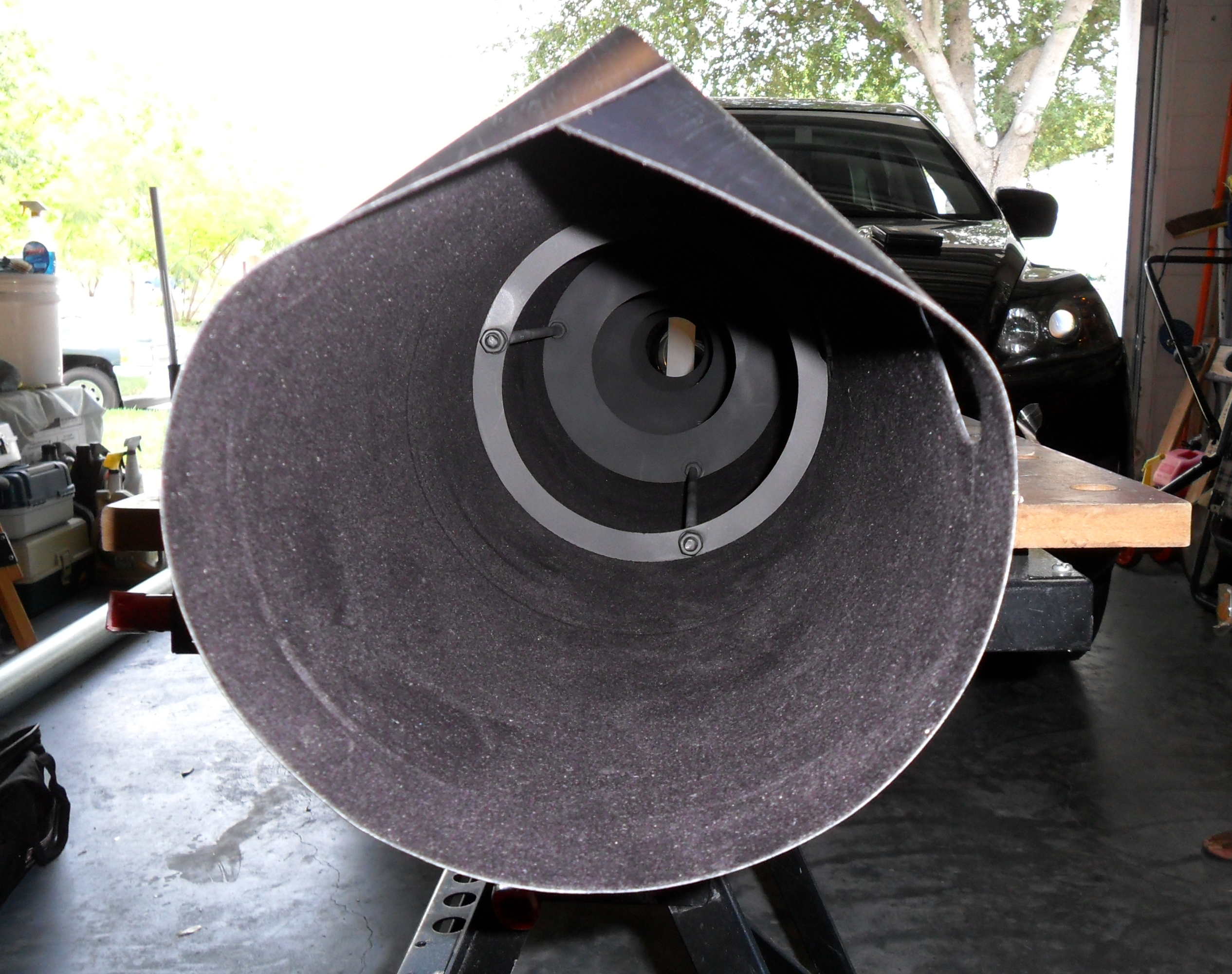

This is a view of the ProtoStar FlockBoard wrapped baffle rack. This
time, you are looking
down the center from the objective end. Once installed, the flocking material's
objective end will stop at the very front edge of the main tube. Even
though you see the flocking material flopping over in the photo, once
wrapped baffle rack is put in and positioned inside of the main tube,
the end of the FlockBoard will be secured using the same hardware that
will be used to attach the rear objective cell to the front end of the
main tube, thereby eliminating the floppy edge. I am sure you
understand, but you will see what I mean later.
But, before I insert the wrapped baffle rack
into the man tube, I will first drill the holes in the main tube for
attaching the OTA handles. |
|
