SAO 10” 'GARY BARABINO' FORK MOUNTED NEWTONIAN COMPONENT SCHEMATICS

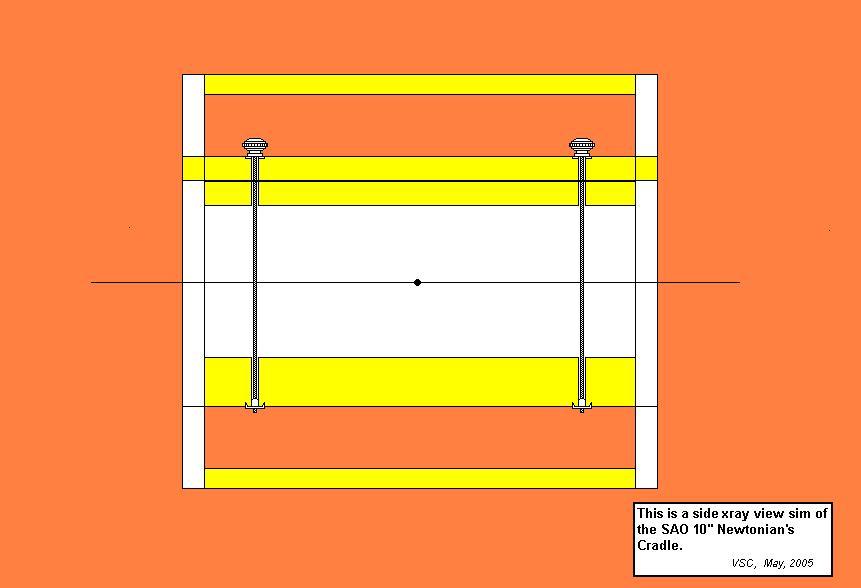

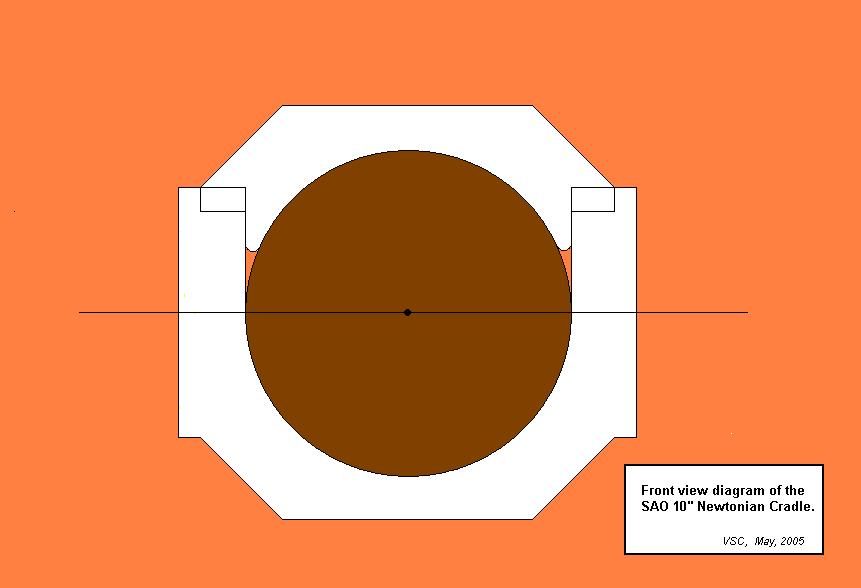

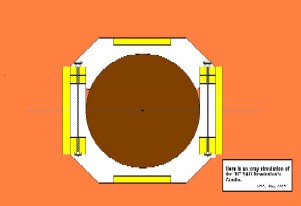

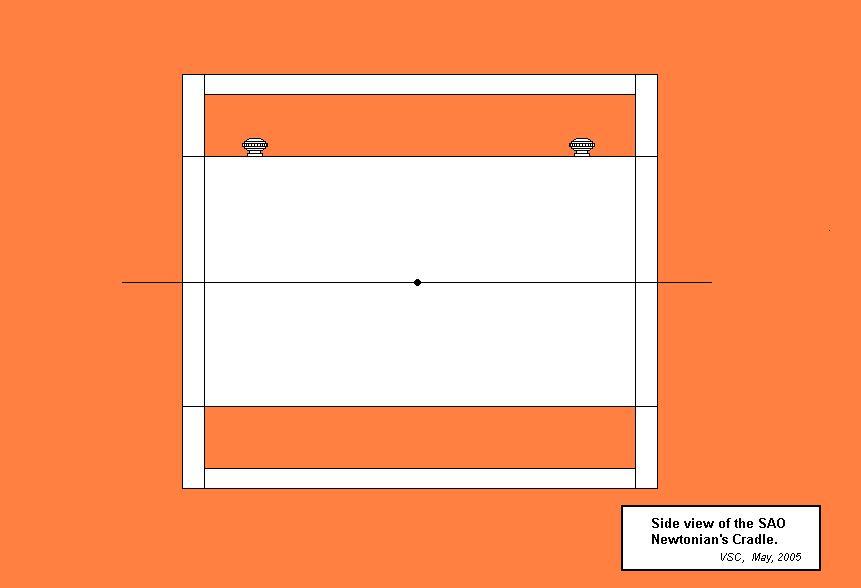

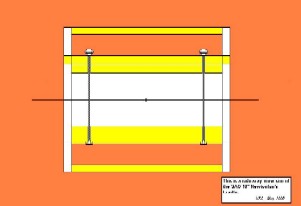

SAO 10" Newtonian OTA Cradle - Frontal View (Opaque) Cradle - Frontal View (Xray) Cradle - Side View (Opaque) Cradle - Side View (Xray) Fork Mount Head - Frontal View (Opaque)

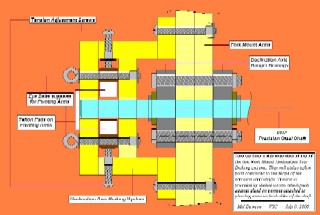

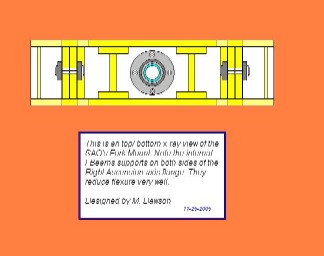

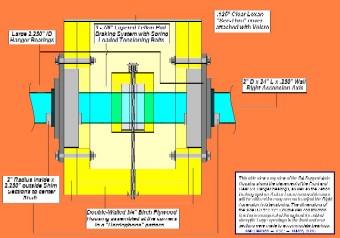

Fork Mount Head - Frontal View (Xray) Fork Mount Head - Top View (Xray) Declination Axis Braking System (Xray) Right Ascension Axis Support Housing - Side View (Xray) Right Ascension Axis Support Housing - Frontal View (Xray) Fork Mount Base - Side View (Opaque)

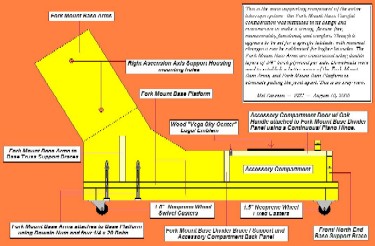

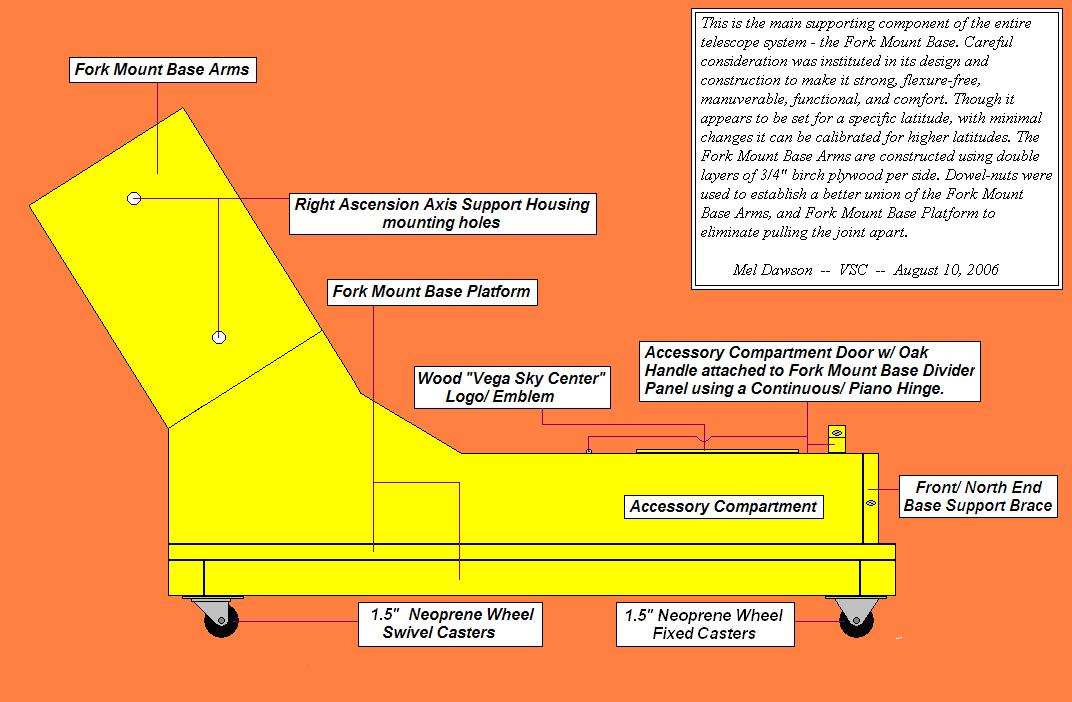

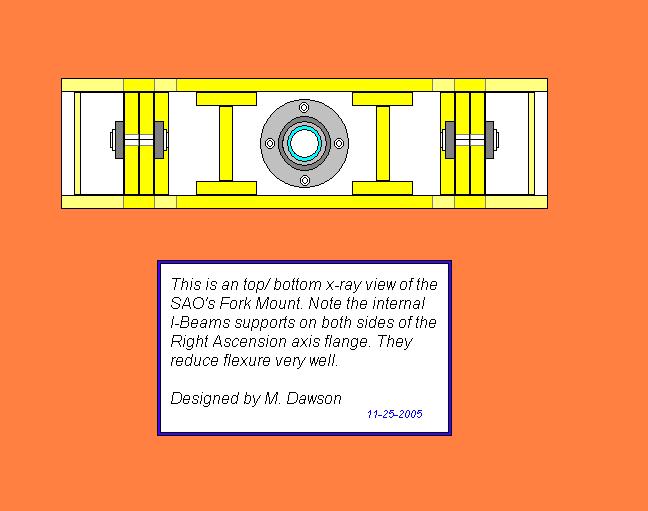

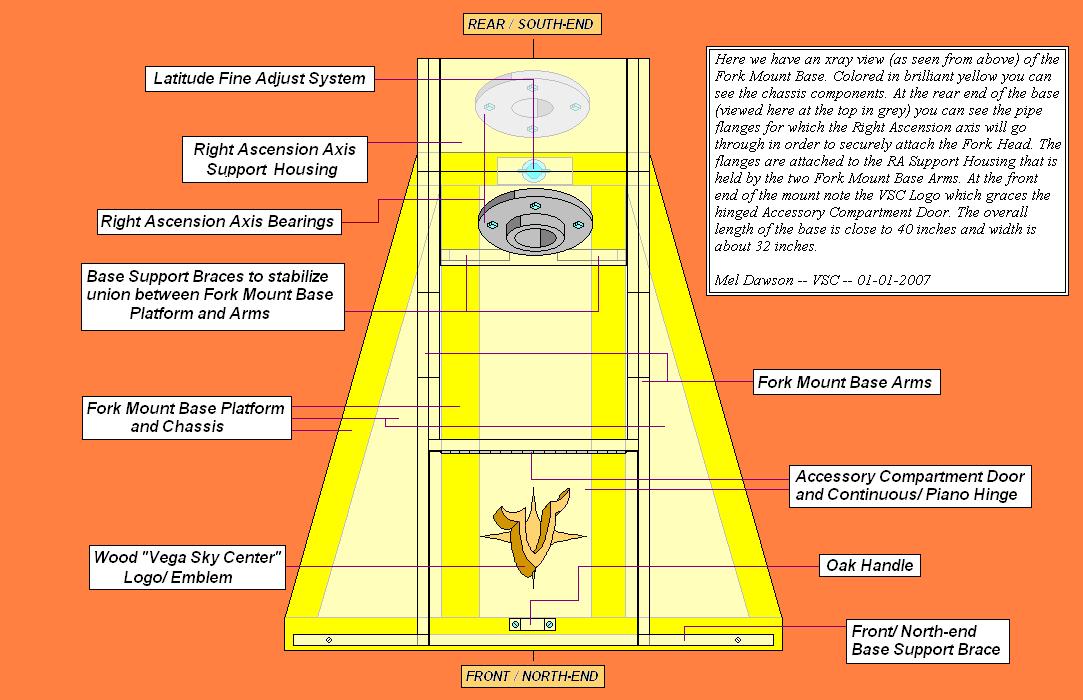

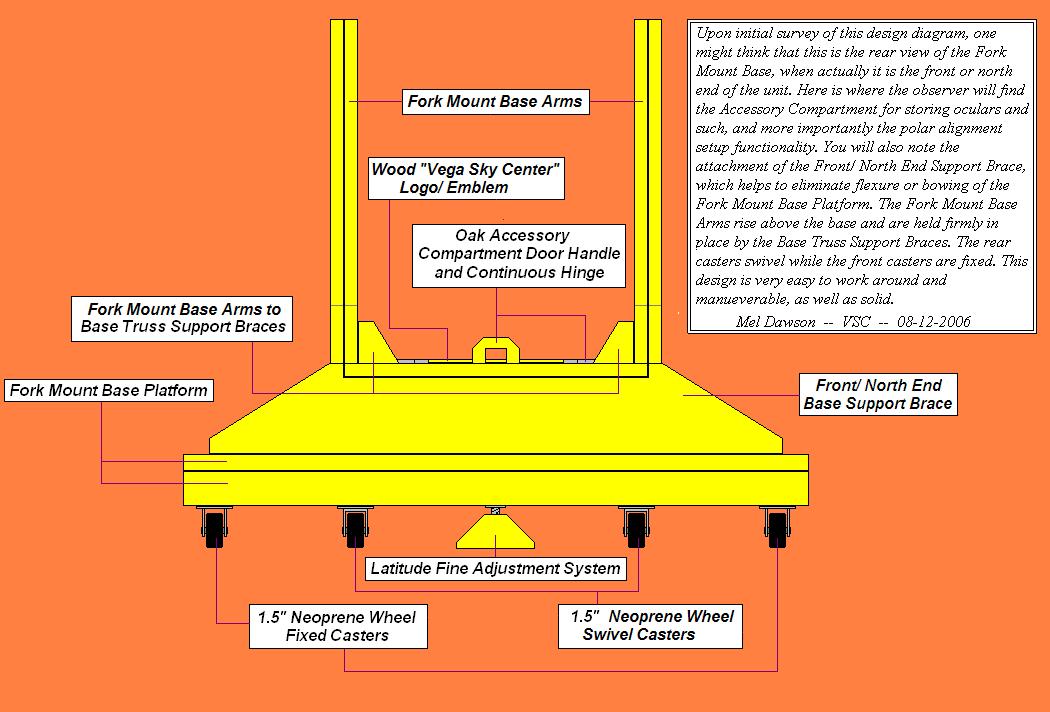

Fork Mount Base - Side View (Xray) Fork Mount Base - Front View (Opaque) Fork Mount Base - Rear View (Opaque) Fork Mount Base - Front/ Rear View (Xray) Fork Mount Base - Top View (Opaque) Fork Mount Base - Top View (Xray)

On this page, we are hosting a montage of drawings illustrating the schematic diagrams for each of the components that make up the Vega Sky Center's SAO 10" f/5.65 'Gary Barabino' Fork Mounted Newtonian Reflector as constructed by Mel Dawson. Please click on any specific design diagram of interest above to display its full size view. If you have any questions, please feel free to contact us at:
