VSC/ SAO NORTH STAR II FIELD TRIPOD

COMPONENT SCHEMATICS

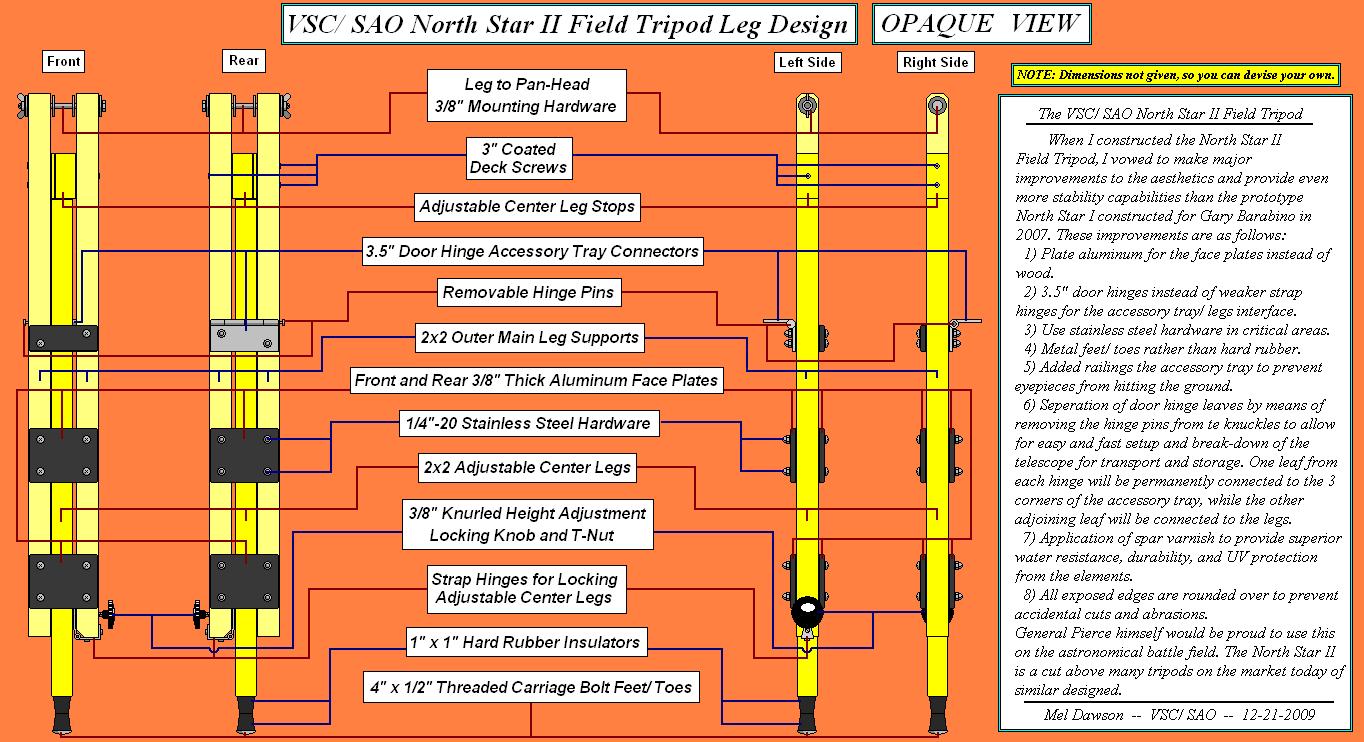

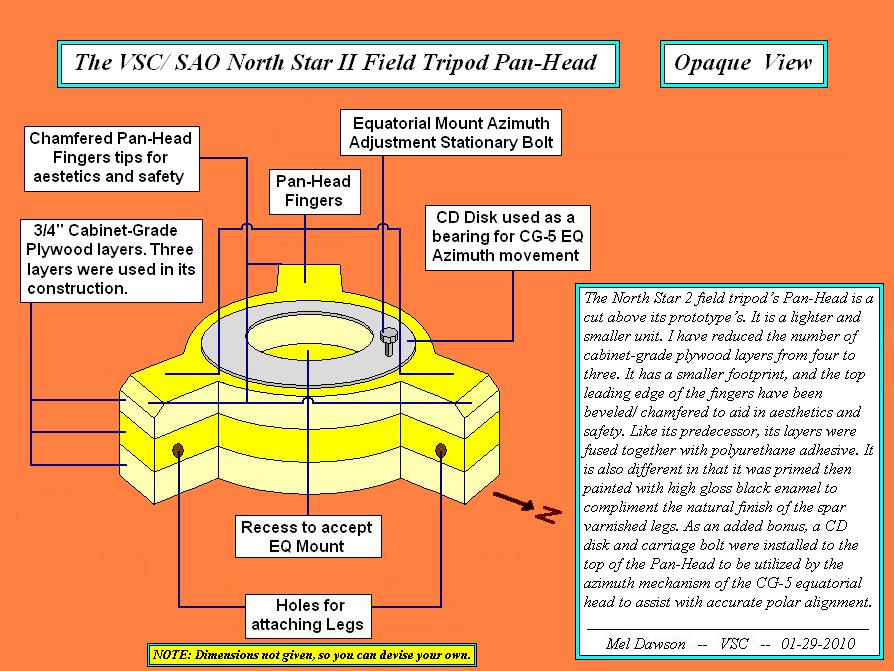

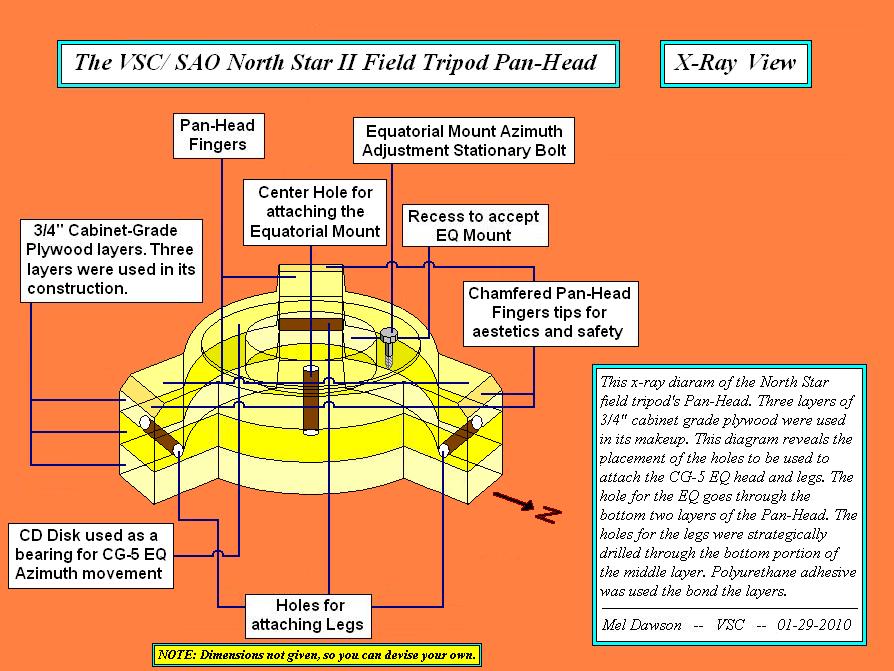

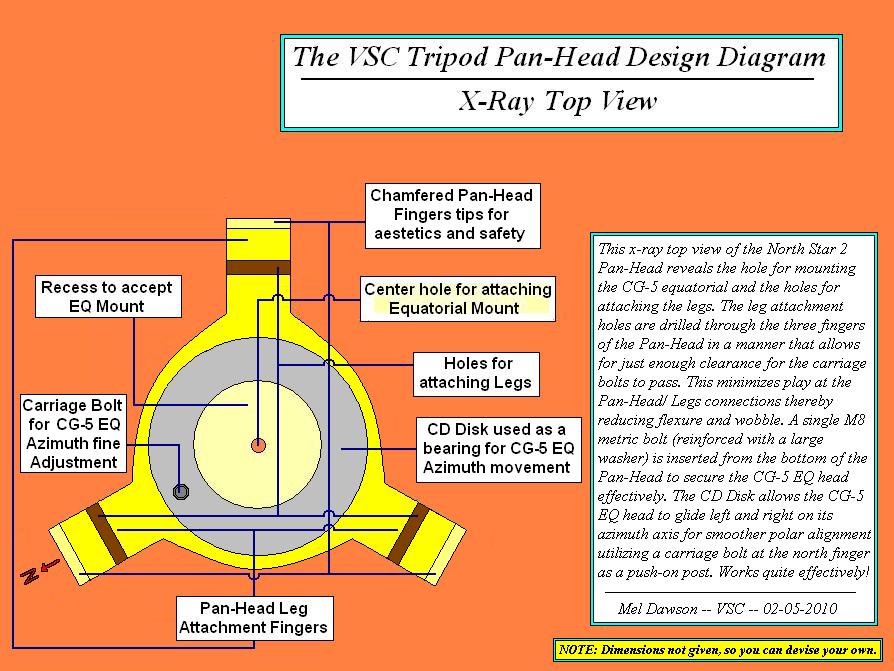

North Star II Field Tripod Pan-Head (Opaque) North Star II Field Tripod Pan-Head (Xray) North Star II Field Tripod Pan-Head Top View (Xray) North Star II Field Tripod Legs (Opaque)

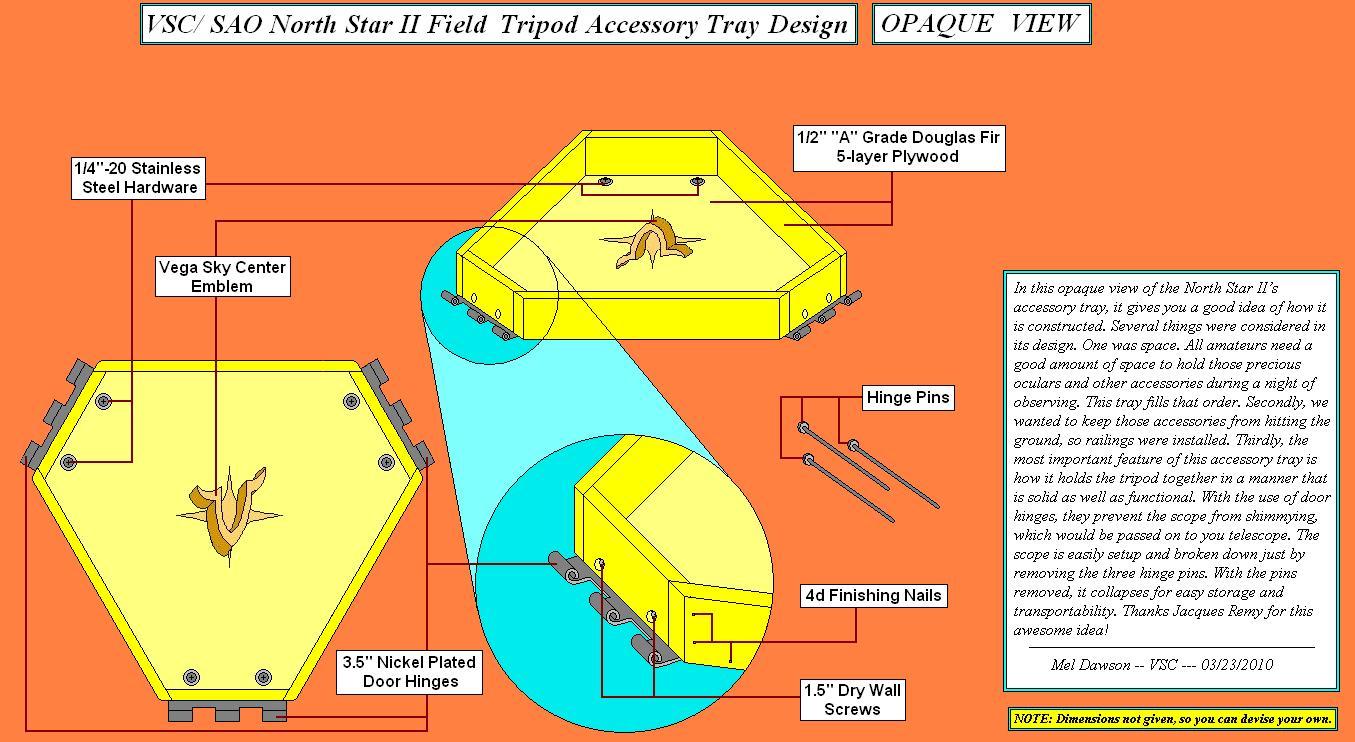

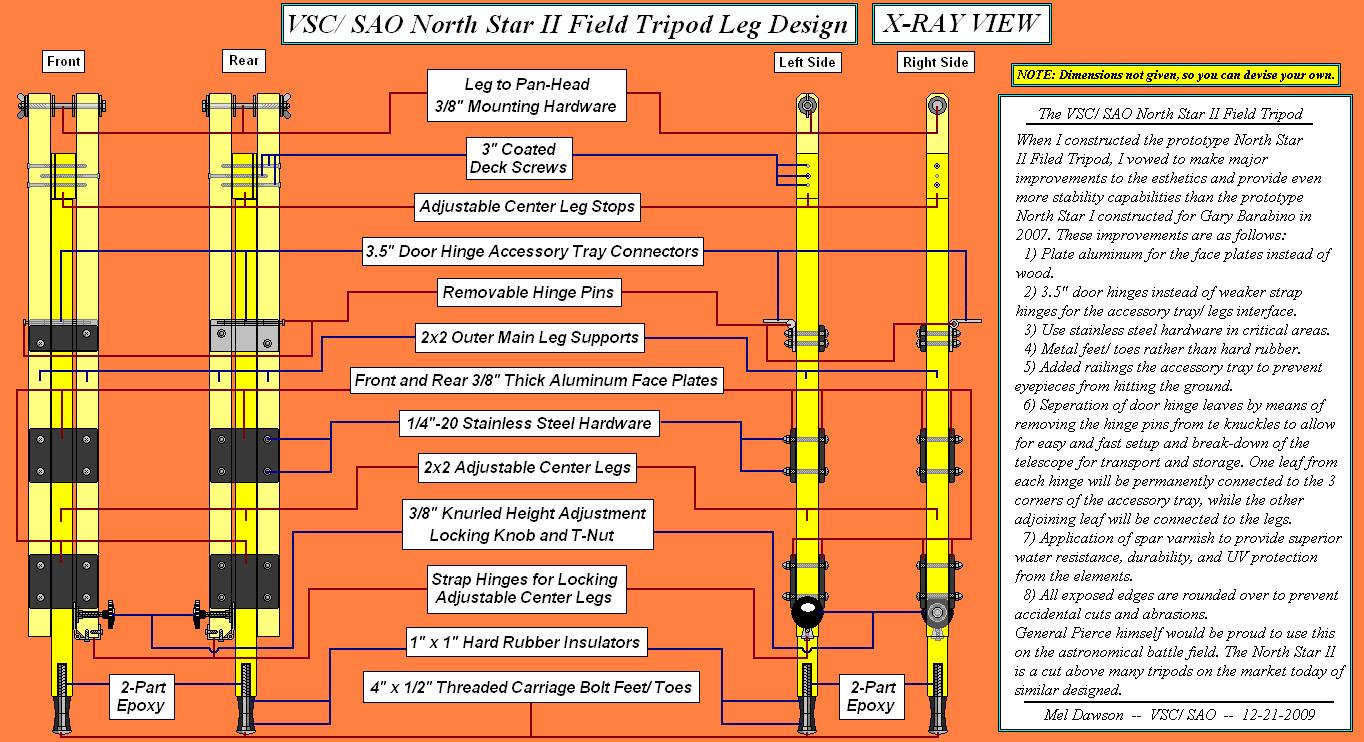

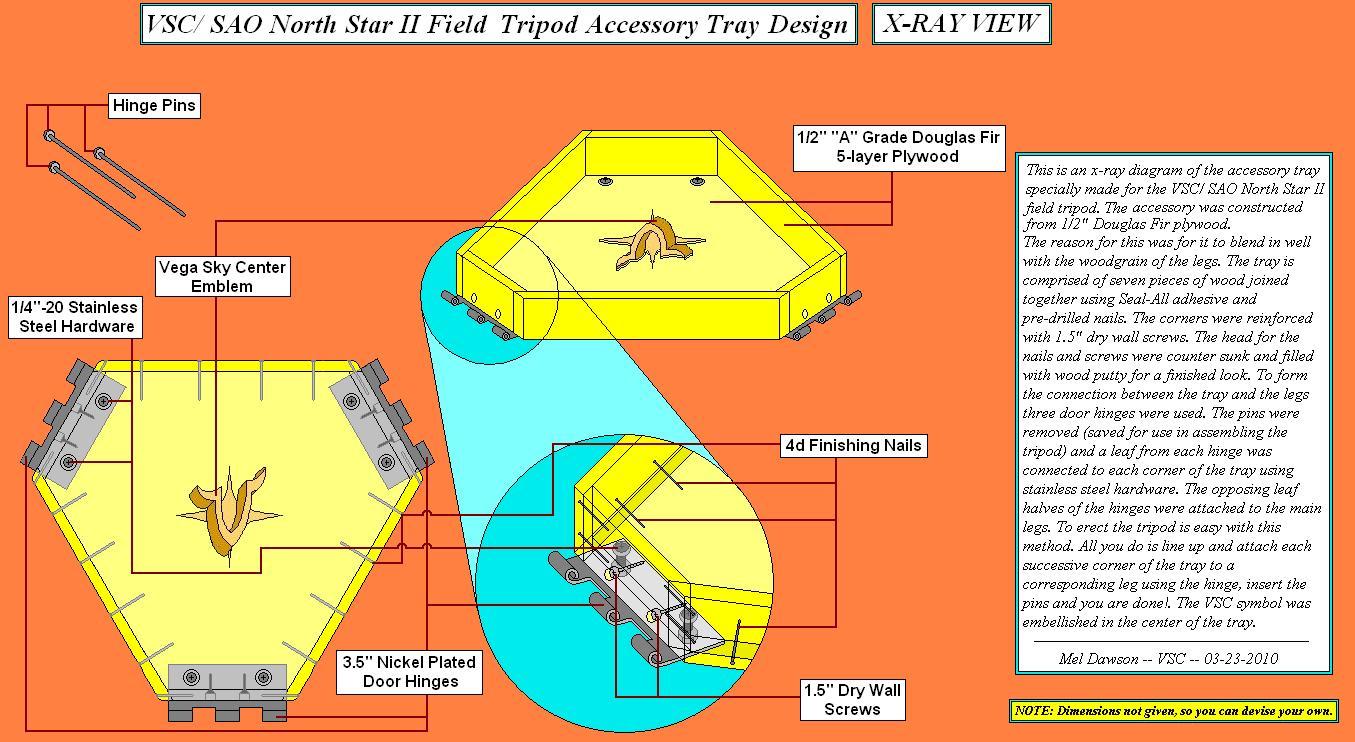

North Star II Field Tripod Legs (Xray) North Star II Field tripod Accessory Tray (Opaque) North Star II Field tripod Accessory Tray (Xray)




On this page, we are hosting a montage of renderings illustrating the schematic diagrams shown for the components that make up the Vega Sky Center's SAO North Star II Field Tripod as constructed by Mel Dawson. Please click on any specific design diagram of interest above to display its full size image. If you have any questions, please feel free to contact us at:
