North Star II Field Tripod Construction - Adjustable Center Legs Assembly 4

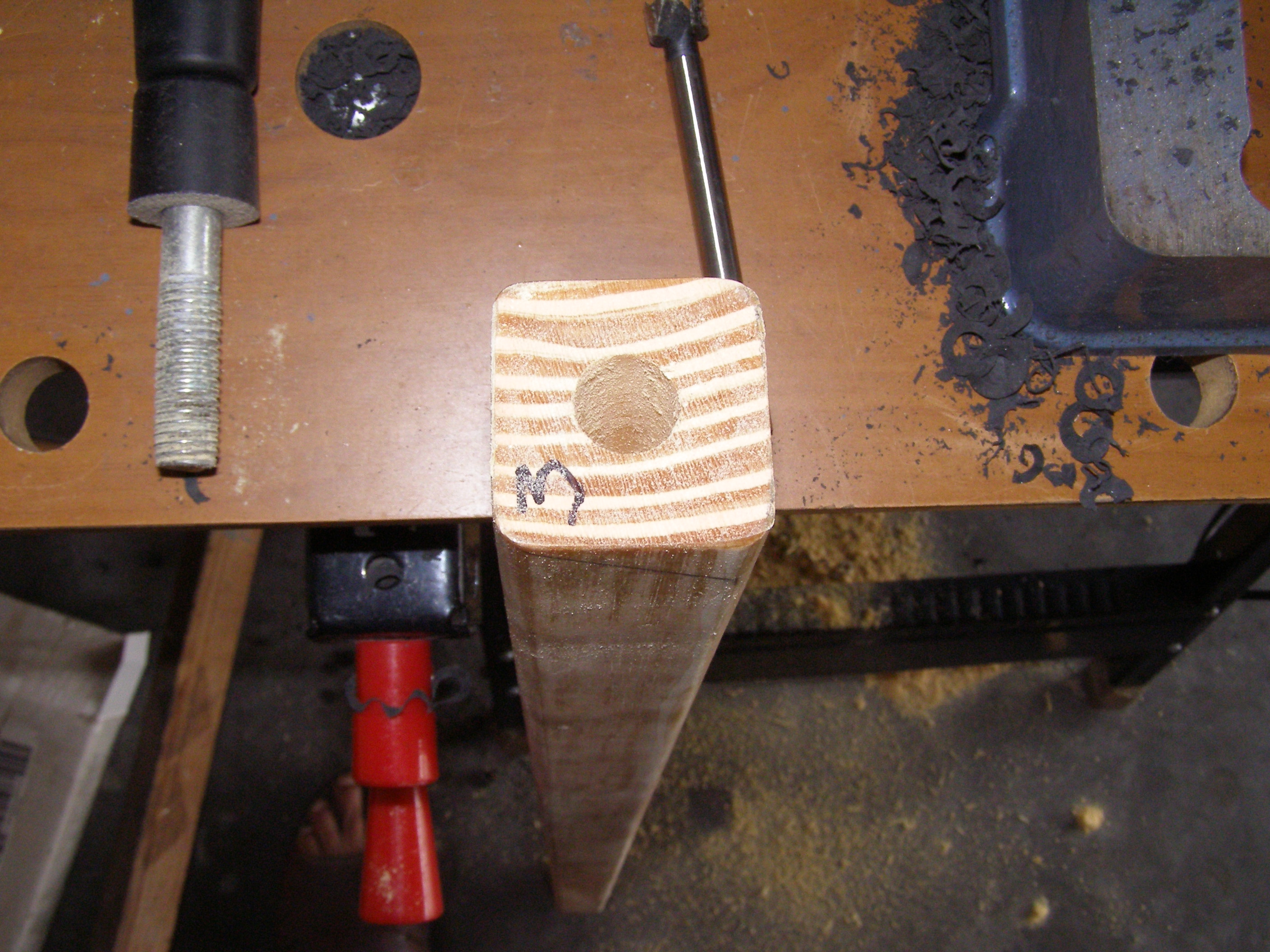

A hole drilled at the end of one if the "adjustable center legs" to receive the foot... (Click for enlarged view)


A 1/2"inch hole was drilled 3.5" inches down the center of the bottom end of the three "adjustable center legs" to insert the feet we made previously. Two part epoxy (using JB-Weld) will be injected into the hole and applied to the bolt threads. A bolt will in turn be inserted into the foot of each "adjustable center leg" with the appliance feet serving as bushing stops.
