Cradle
Components - Cut from 3/4" inch 9 Layer Birch Plywood |
|||
|
|
Cradle
Components - Cut from 3/4" inch 9 Layer Birch Plywood |
|||
|

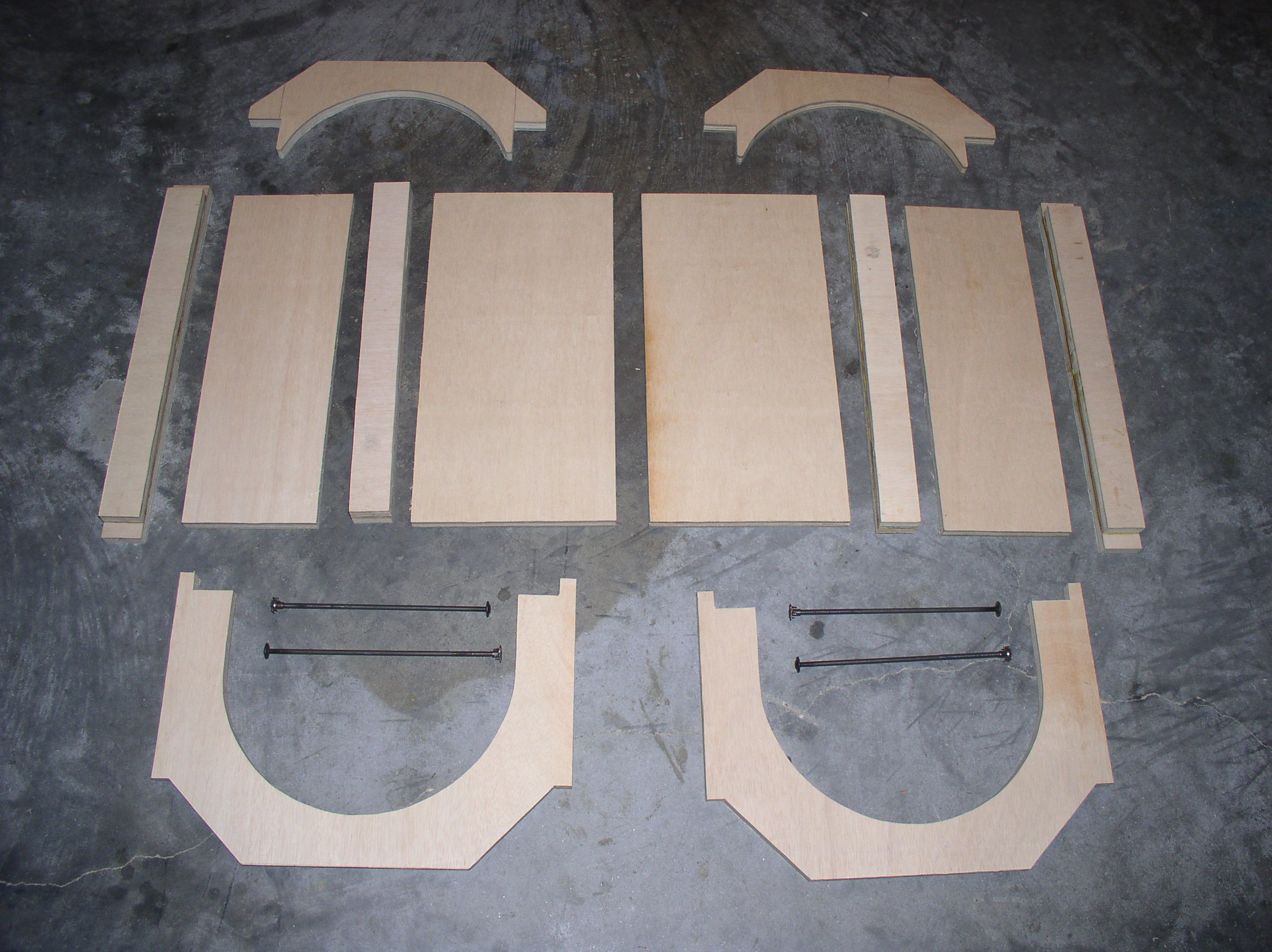

| Arranged
my garage
floor are the twelve main individual pieces that make up the cradle
for the SAO's 10" Newtonian. The pieces are 9 layer/ 3/4"
Birch cabinet-grade plywood and were cut from a single 4'x8' sheet
purchased from Home DepotŪ. As depicted in the photo, there are four
10" long 1/4"-20 threaded steel bolts with T-Nuts that will
be used to clamp the top and bottom of the completed cradle to secure
the scope effectively.
|
|
