Jaegers 6" f/10 "GJD" OTA Construction - Knife-Edge Baffles (2nd knife-edge revealed - back)

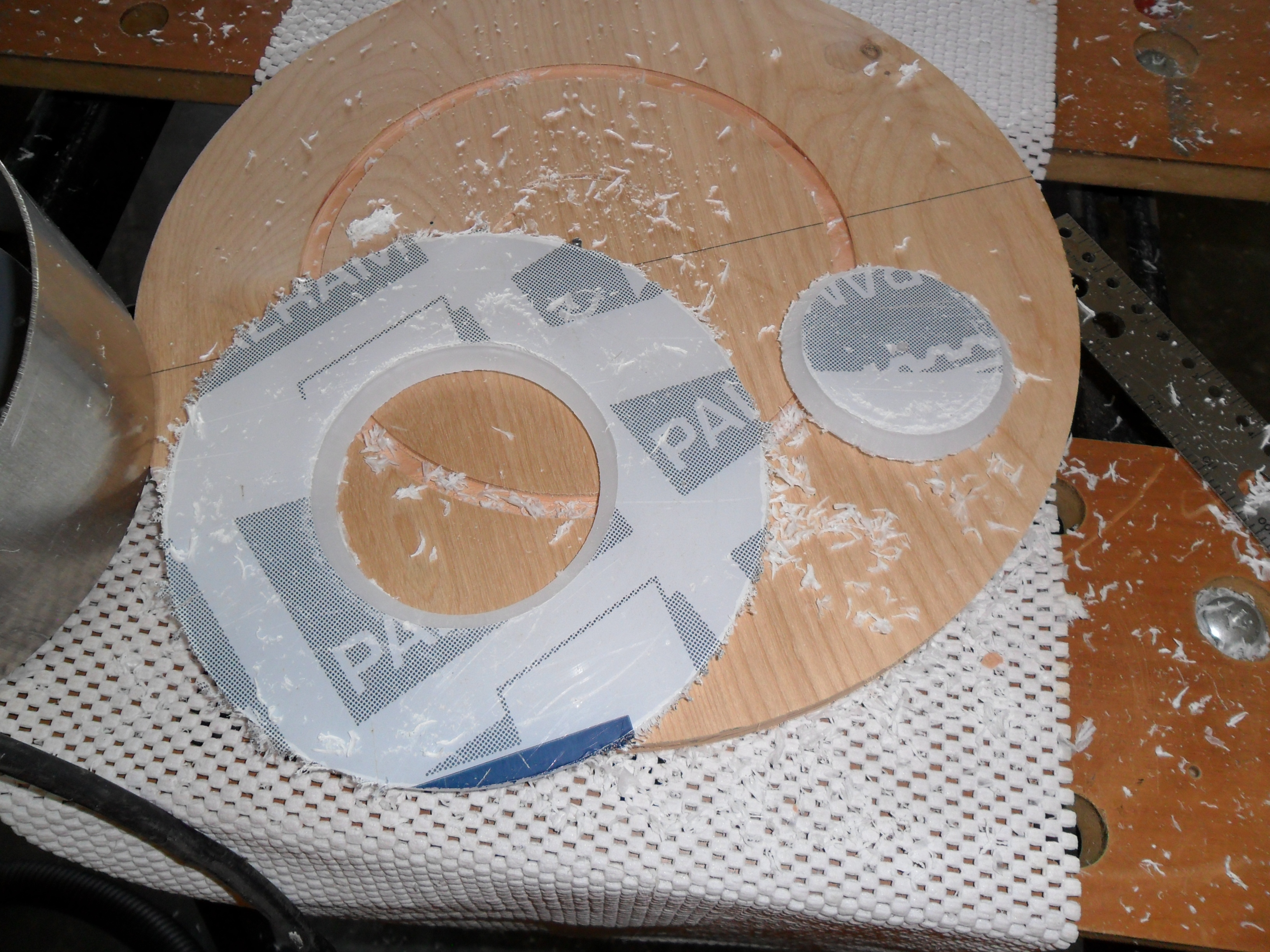

Knife-edge for the second baffle cut free - 19 (Click to see an enlarged image.)


Using the same routing method as with the first baffle, the knife-edge of the second baffle was generated just as effortlessly. The only change was to move the Jasper circle jig to the hole that would allow for a 3" knife-edge opening cut. As you can see in the image, the v-groove bit did a marvelous job of creating a perfect knife-edge in the back of the disk. Only a bit of work remains to remove the coating and burrs from the edges.
