Jaegers 6" f/10 "GJD" OTA Construction - Knife-Edge Baffles (baffle rack assembly - 2)

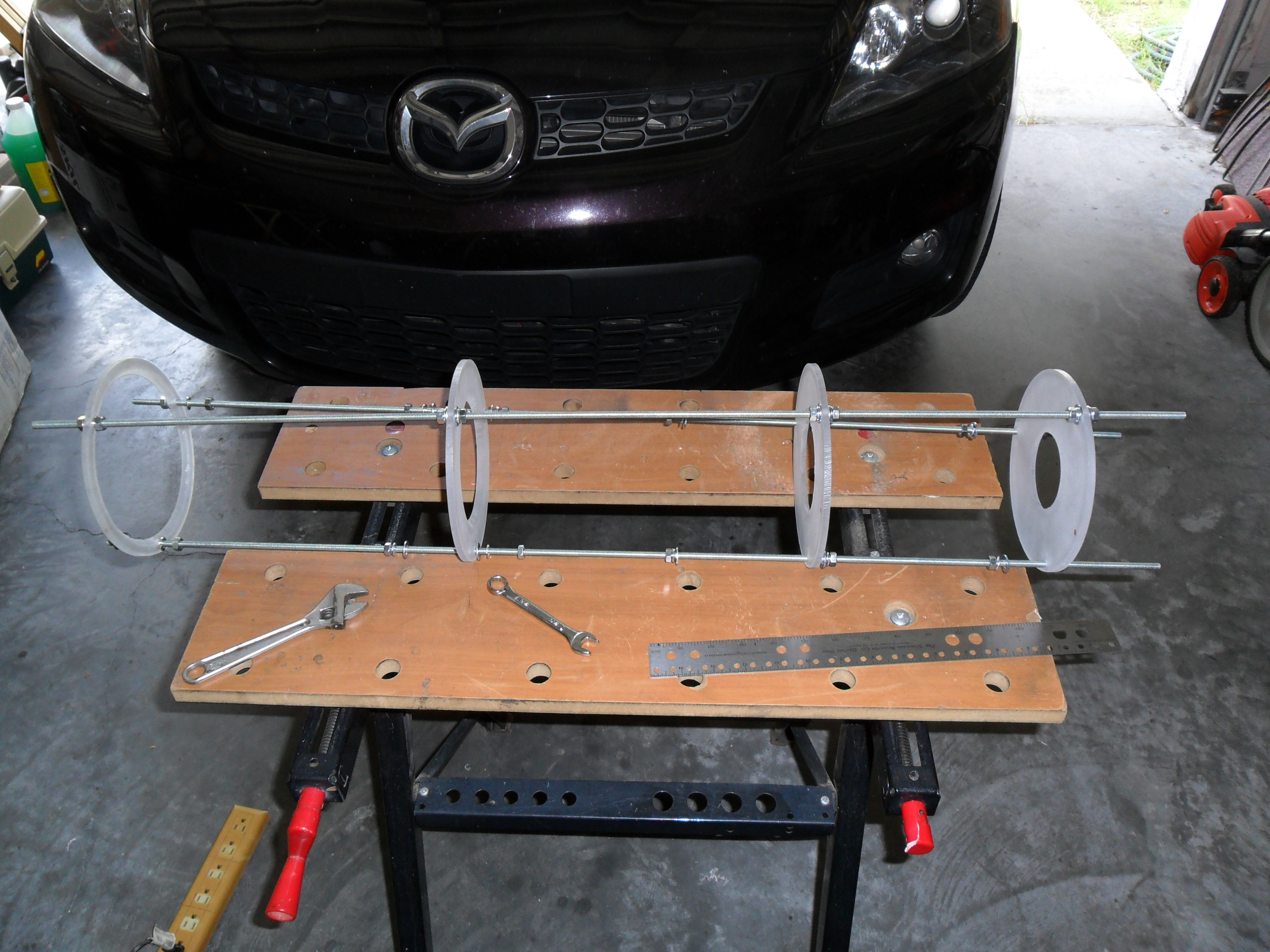

 All four baffles installed on rack ready for proper spacing - 42 (Click to see an enlarged image.)

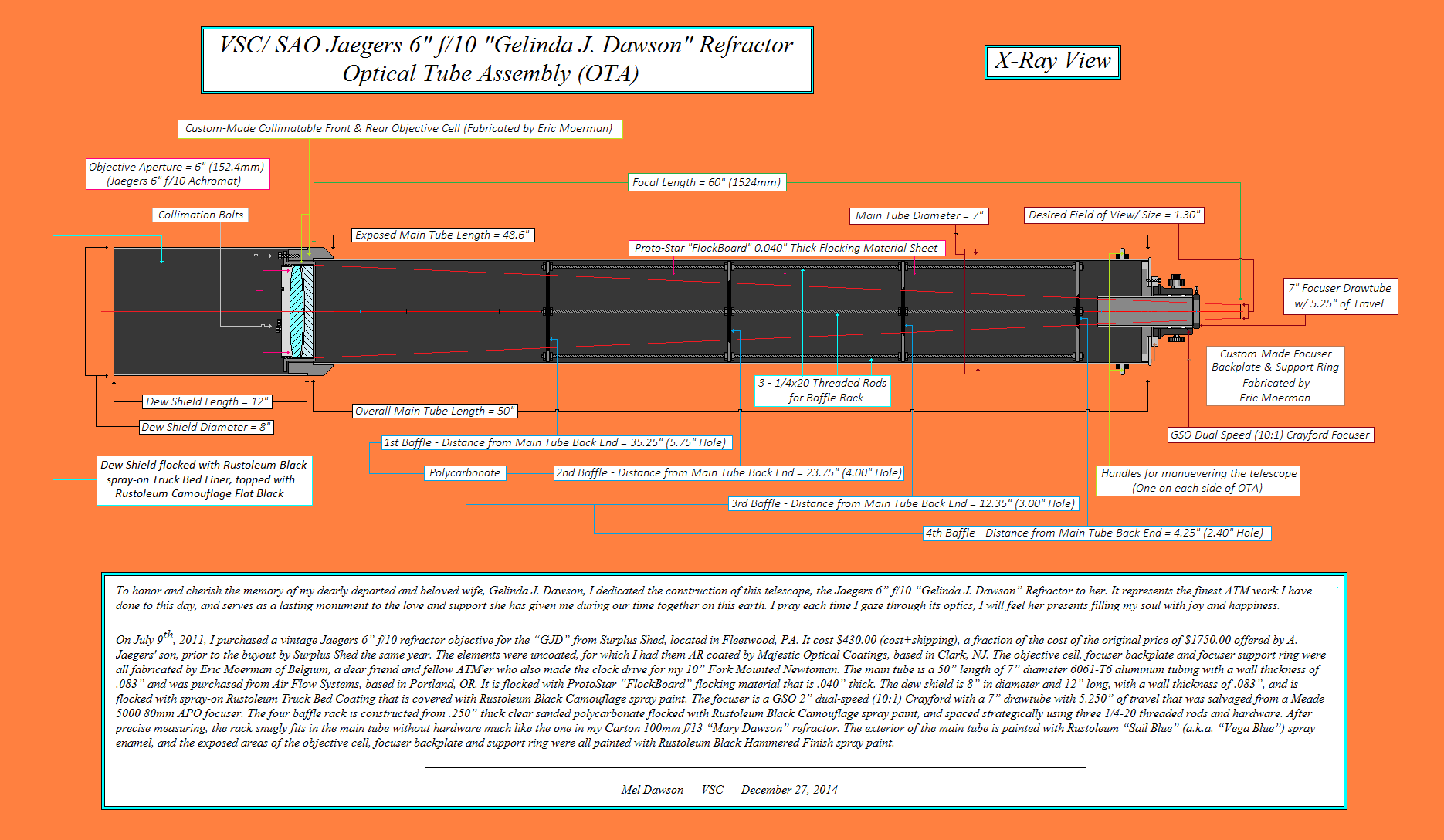

All knife-edge baffles for the Jaegers 6" f/10 "Gelinda J. Dawson" refractor have now been loosely attached to the three (3) threaded 1/4"-20 threaded rods, as seen above. To space them appropriately, I will be referring to the measurements provided in the ray trace photo and diagram located at these locations: Ray Tray Photo and Ray Trace Diagram
