North Star Tripod - Construction Overview - Completed Pan-Head

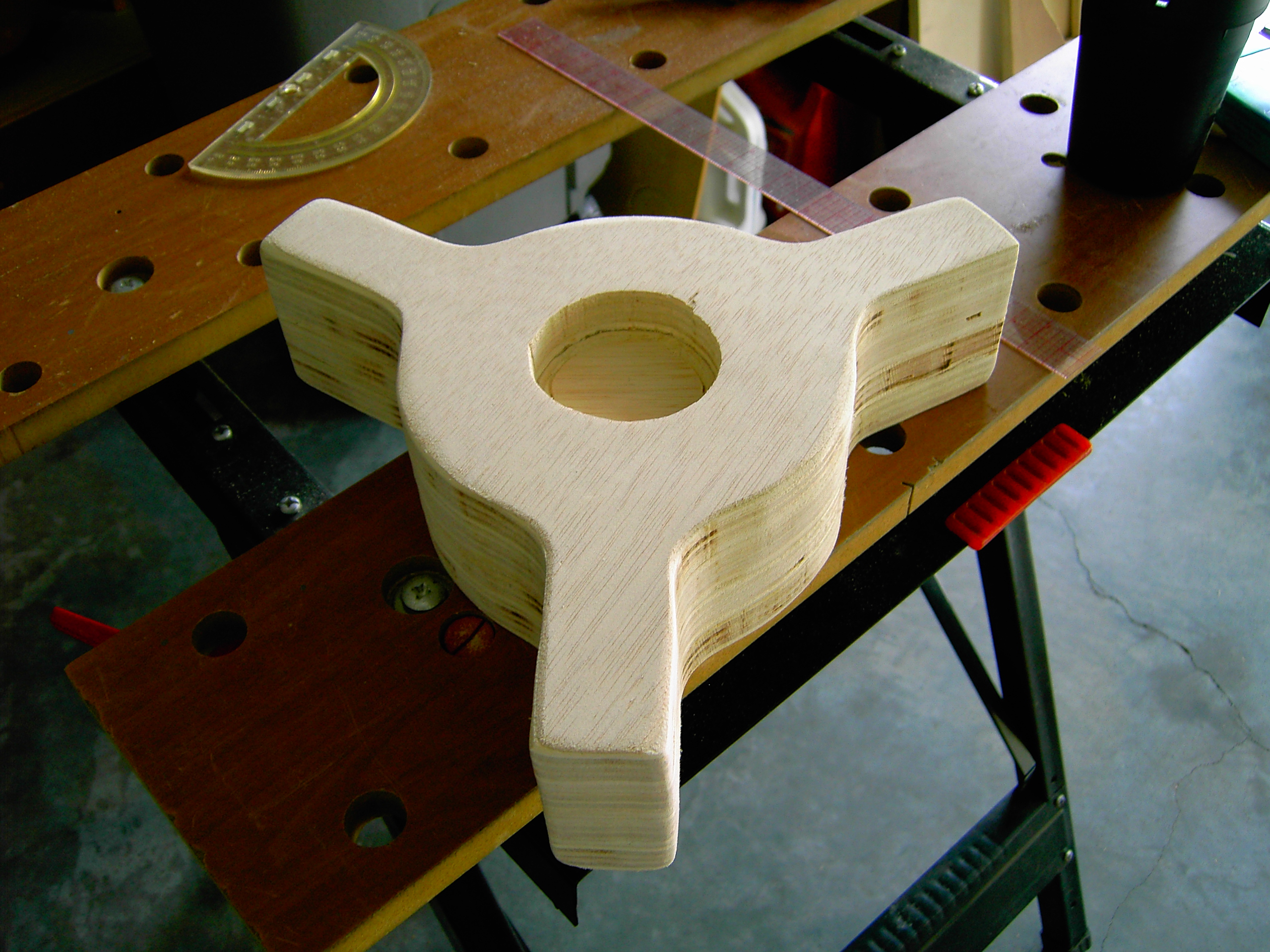

  The completed Pan-Head ready for spar varnish. Click to enlarge image!


With all surfaces sanded, and all edges slightly rounded over (except for the center hole reserved for the EQ) using an orbital sander with a 220-grit sanding disk, the Pan-Head is almost ready for several coats of spar varnish. But, before applying the finish, a vertical 5/16” inch hole must be drilled through the center of the Pan-Head for receipt of the CG-5 equatorial mount head. Additionally, horizontal holes must be drilled through each of the three fingers for attachment of the legs. Despite being fairly hefty in appearance, the Pan-Head is rather lightweight. Yet, it is very strong, and rigid.
