Jaegers 6" f/10 "GJD" OTA Construction - Rear Lens Cell (prepping to prime - 4)


Prepping Rear Objective Cell for flocking and painting - 4 (Click to see an enlarged image.)

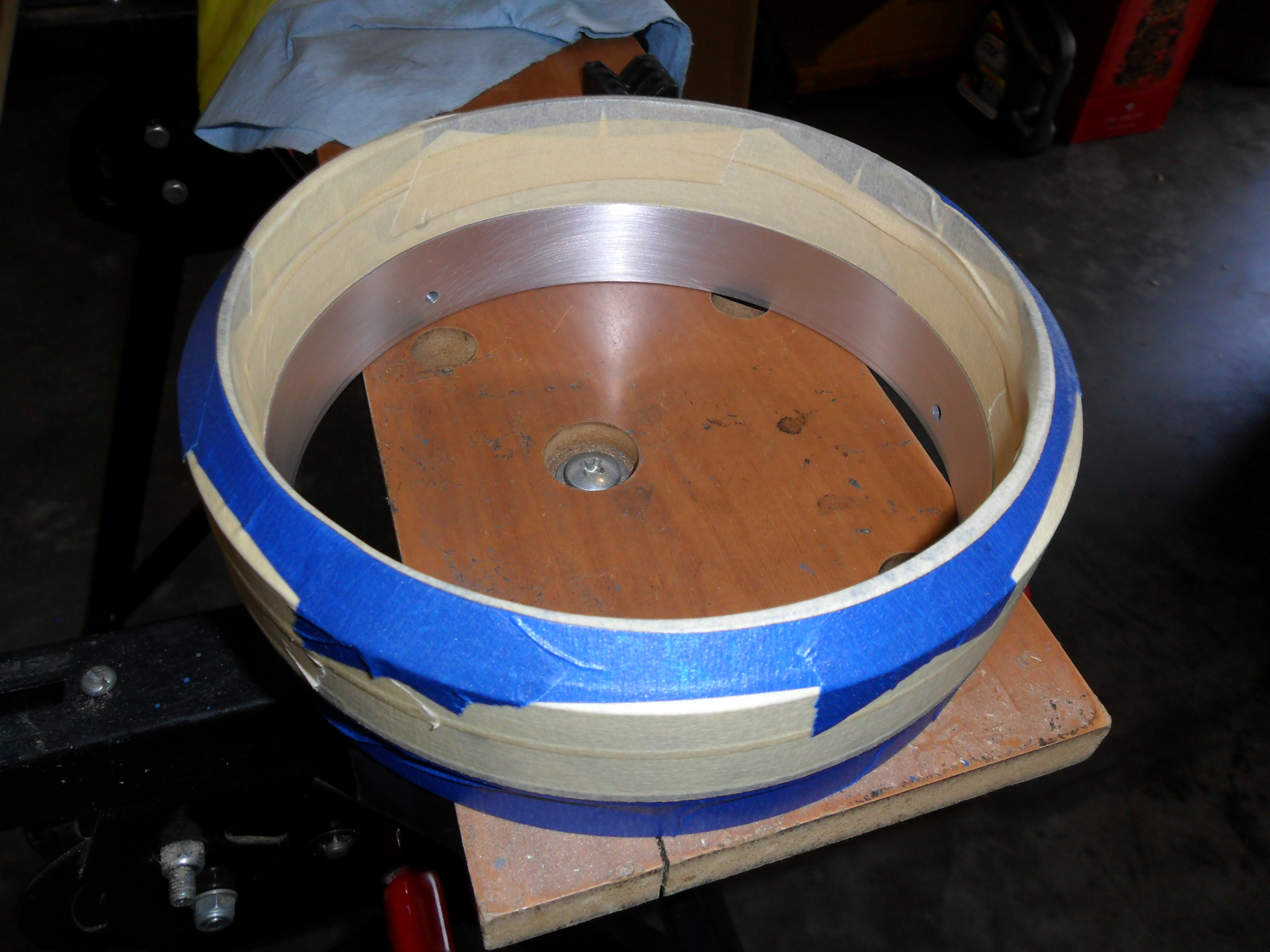

Masking is almost complete after I applied the last pieces of tape to the interior section of the rear cell where the main tube will slide into. I just have to plug up the holes next. This is a view from the back of the rear cell whereby you can see the 45-degree bevel that provides a graceful transition between the main tube and dew shield.
