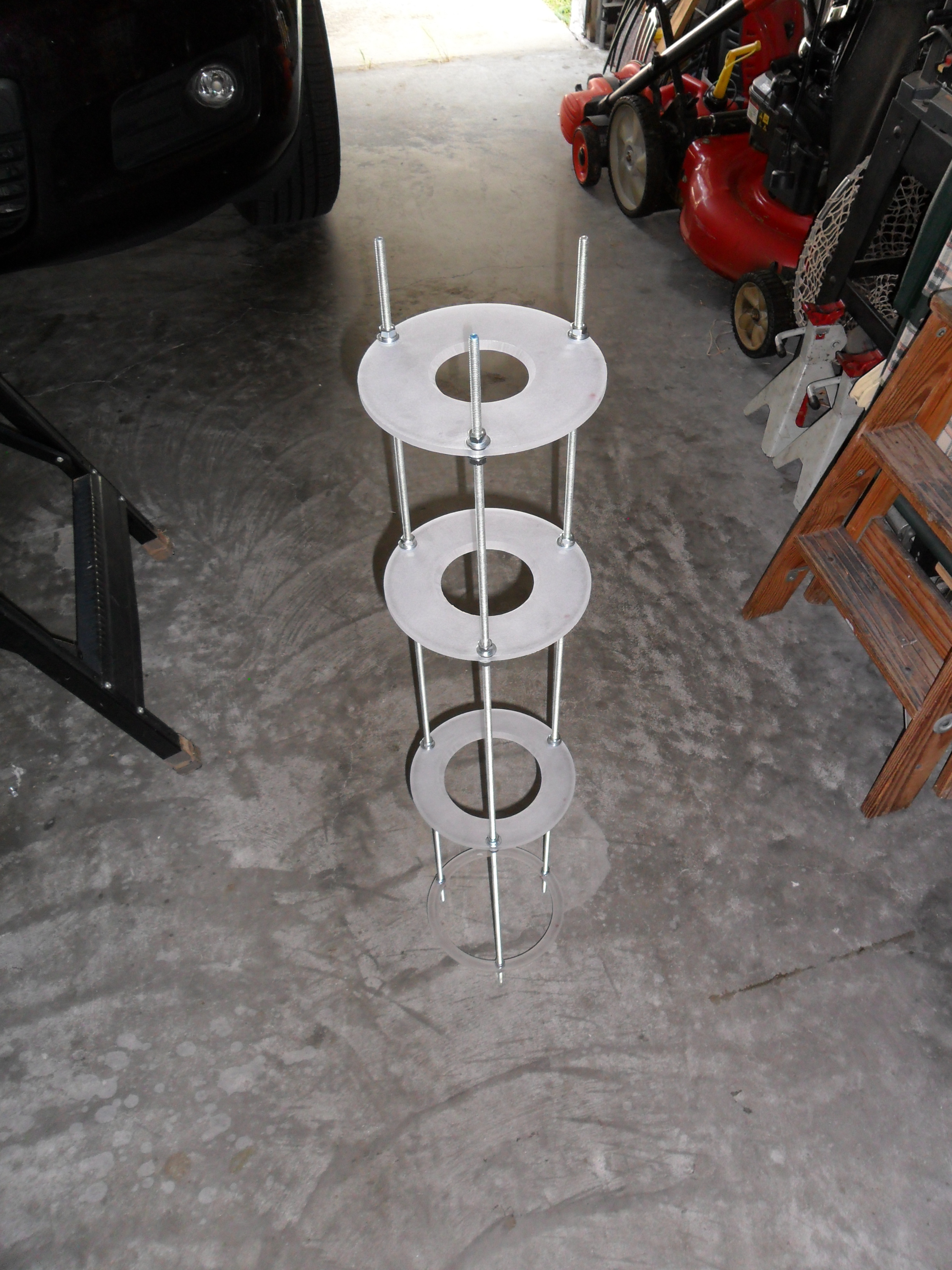

Standing on its own three (3) 1/4"-20 threaded rods, here is a another
view of the completed knife-edge baffle rack with the focuser end at
top and objective end at he bottom. But, though as completed as it is,
there is more work to be done before the priming and painting can be
applied.
Understanding that there are nuts that have been
epoxied to the inside of the main tube for mounting the guide scope
and sliding counterweight system, I will have to notch the
baffles in order for the knife-edge baffle rack can be test fitted. |
|
