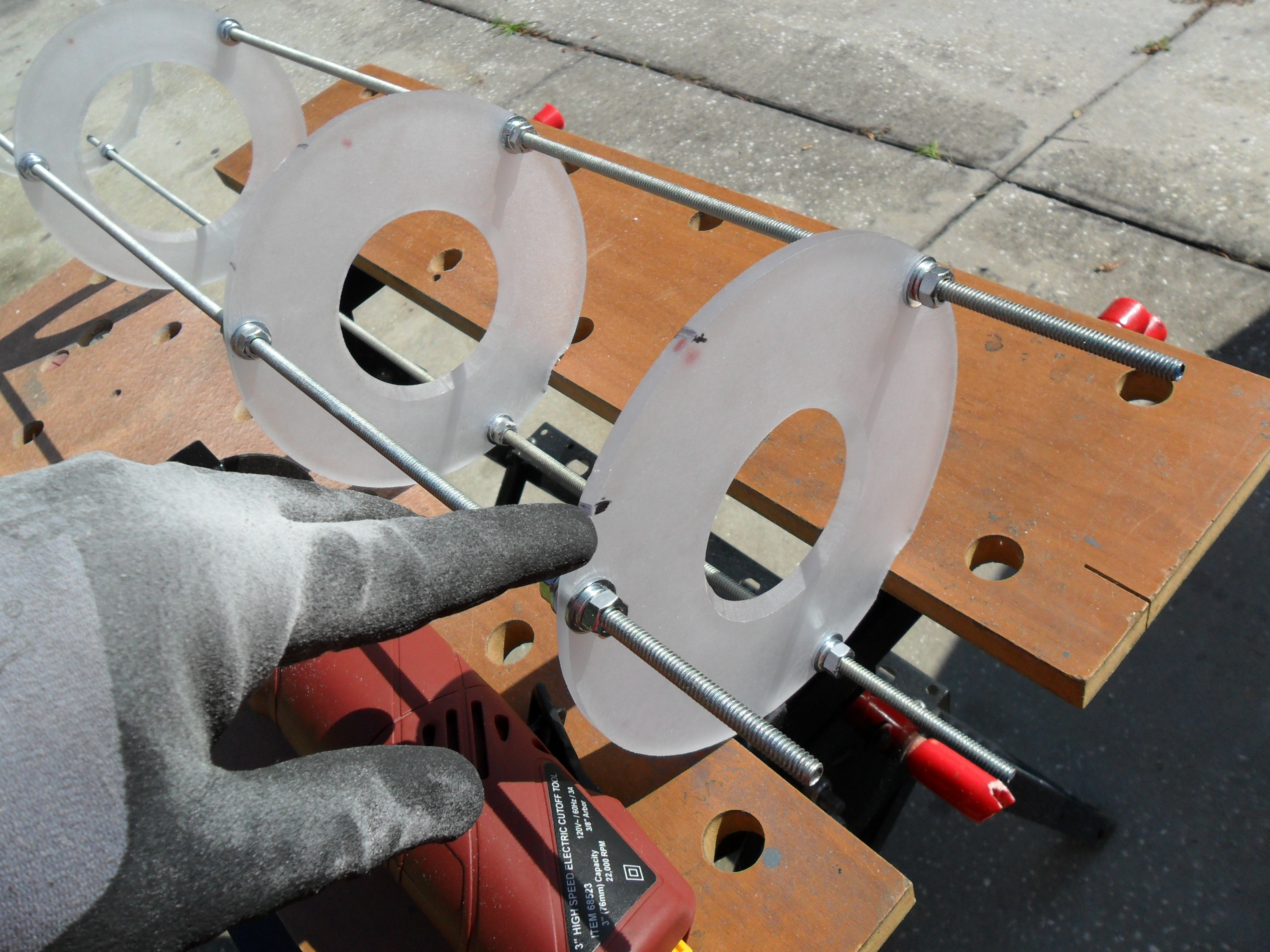

From the distance between the two (2) marks on the knife-edge baffle I
am pointing to, you know that it is going to be larger than the ones I
have cut out for the counterweight system. This is because it is for the
guide scope epoxied nuts to pass, which have two (2) side-by-side.
Therefore, a wider notch will be needed. I will only be notching two
of the knife-edge baffles for passage of the guide scope nuts, which
you will see why on the next page. Now, let's get them cut out
on each baffle at the proper orientation. |
|
