Jaegers 6" f/10 "GJD" OTA Construction - Knife-Edge Baffles (baffle rack test fit - 2)

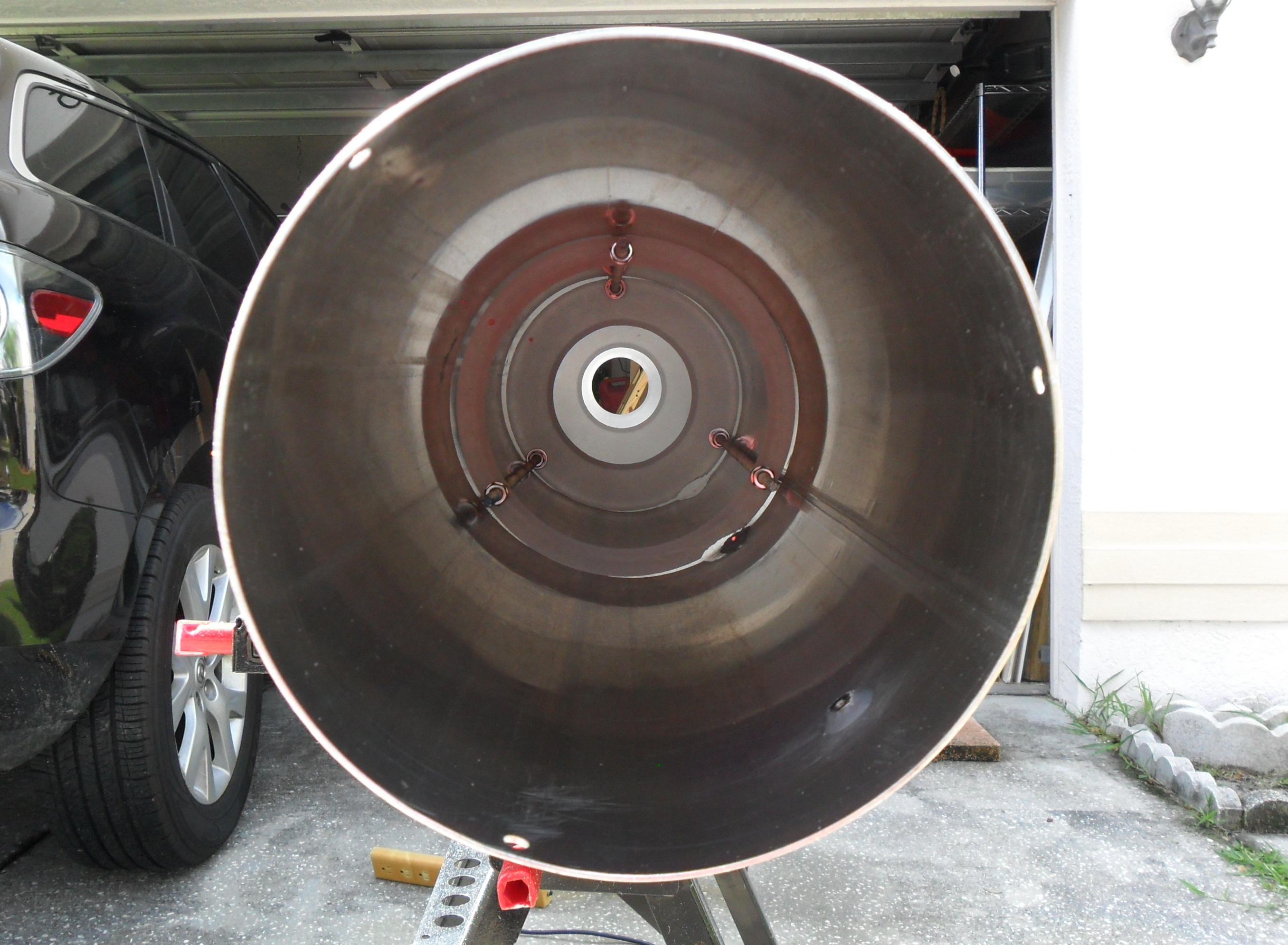

 Test fit in main tube of completed baffle rack after all notches were ground - view from front-end - 52 (Click to see an enlarged image.)


Looking down the main tube from the opposite end where the objective will reside, the test fit of the knife-edge baffle rack turned out and looks great. All of the baffles line up adequately, and will have a sufficient gap between them and the main tube wall to accommodate for the thickness of the ProtoStar FlockBoard that will be installed with the baffle rack later.

With a resounding "thumbs-up" given after the test fit, it is now time to prime the knife-edge baffle rack.
