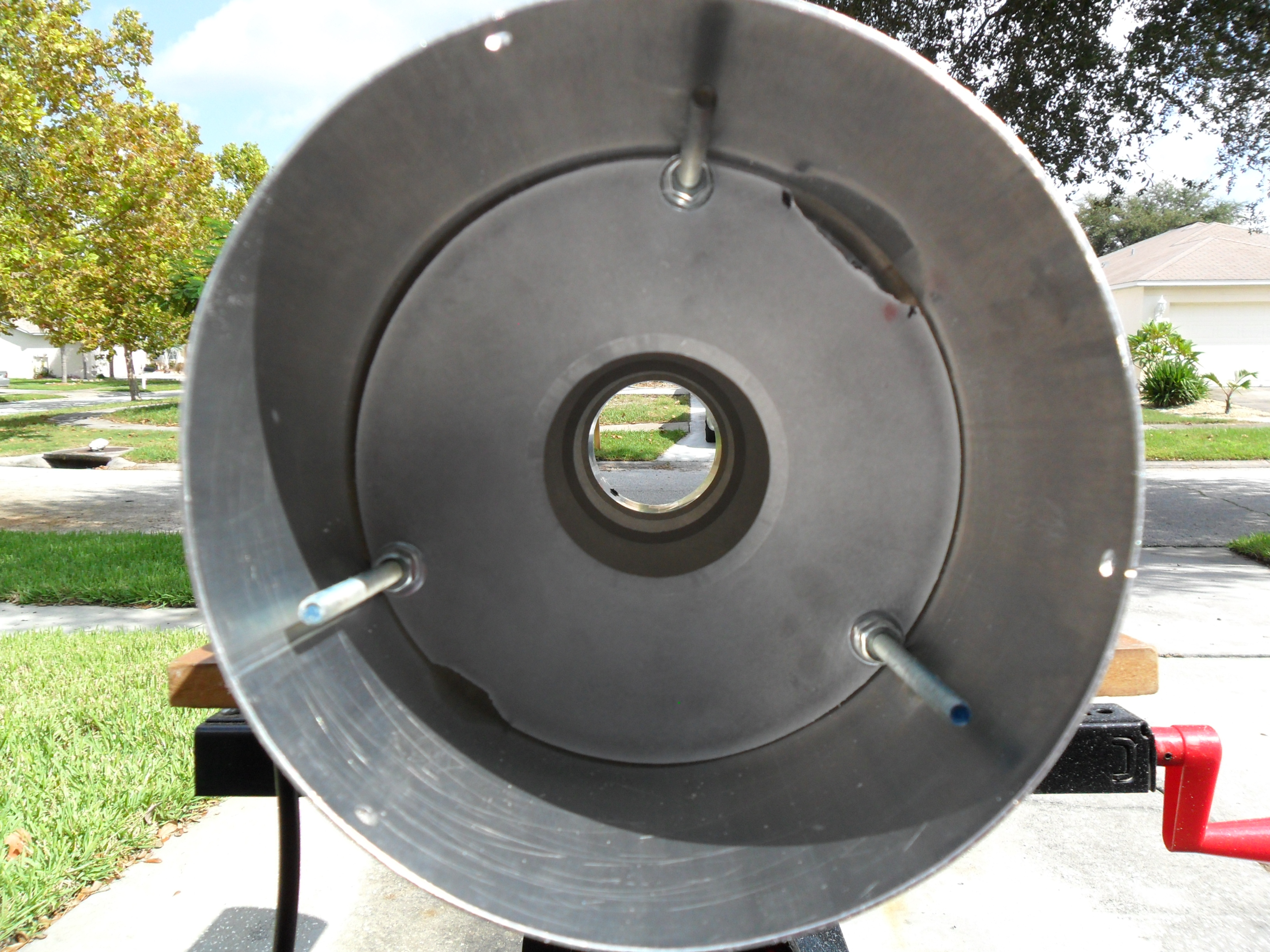

Check it out! The knife-edge baffle rack for the Jaegers 6" f/10
"Gelinda J. Dawson" refractor is all cut and ready for priming and
painting. Looking down the tube from the business end shows how well
the rack fits in the main tube. Positioned at roughly where it will be
permanently placed in the main tube, you can look down the tube and
see how well the baffles line up to show how their knife-edge
apertures are slightly oversized, which will allow for a desired field
size (in the case of this scope - 1.3") to fully illuminate a standard
CCD chip in your average DSLR. Let's take a look from the objective
end on the next page. |
|
