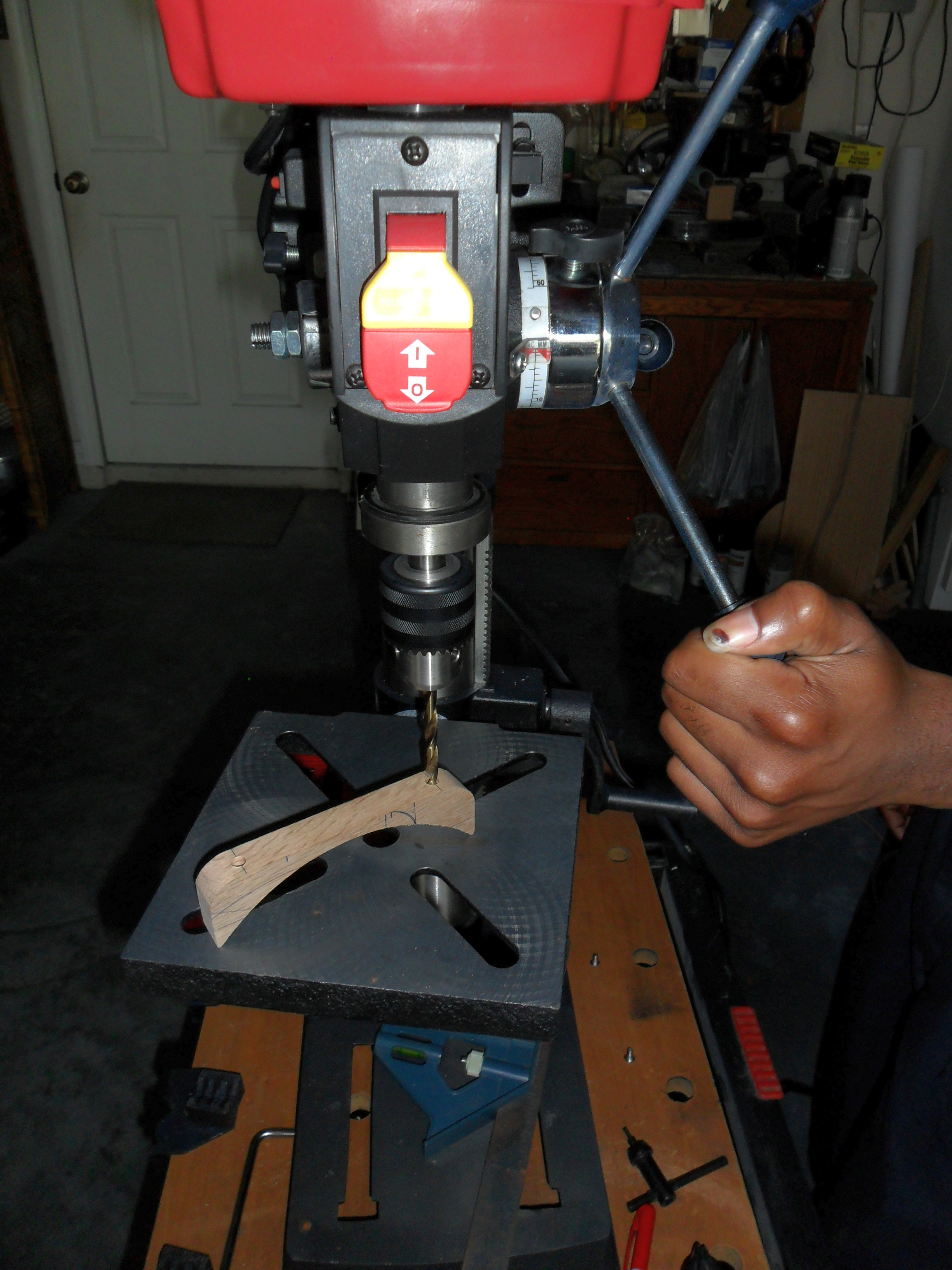

Here my son Jarvis prepares to bore the 1/4" (.250") holes
to a depth of 1/2" (.500") in one (1) of the two (2) oak wood handle
supports that will accept the chrome plate brass handles, which
requires two (2) holes. Once the 1/4" holes have been drilled to the
1/2" depth in the handle supports, I will follow up with a narrower
1/8" (.125") drill bit and bore completely through the center of the
1/4" hole for mounting to the OTA later. The 1/4" bore will create a
1/2" recess that will support the metal handles and prevent them from
shifting and going through the handle supports. |
|
