Jaegers 6" f/10 "GJD" OTA Construction - Cradle Rings, Dovetail Plate & Adapters Assembly - 4

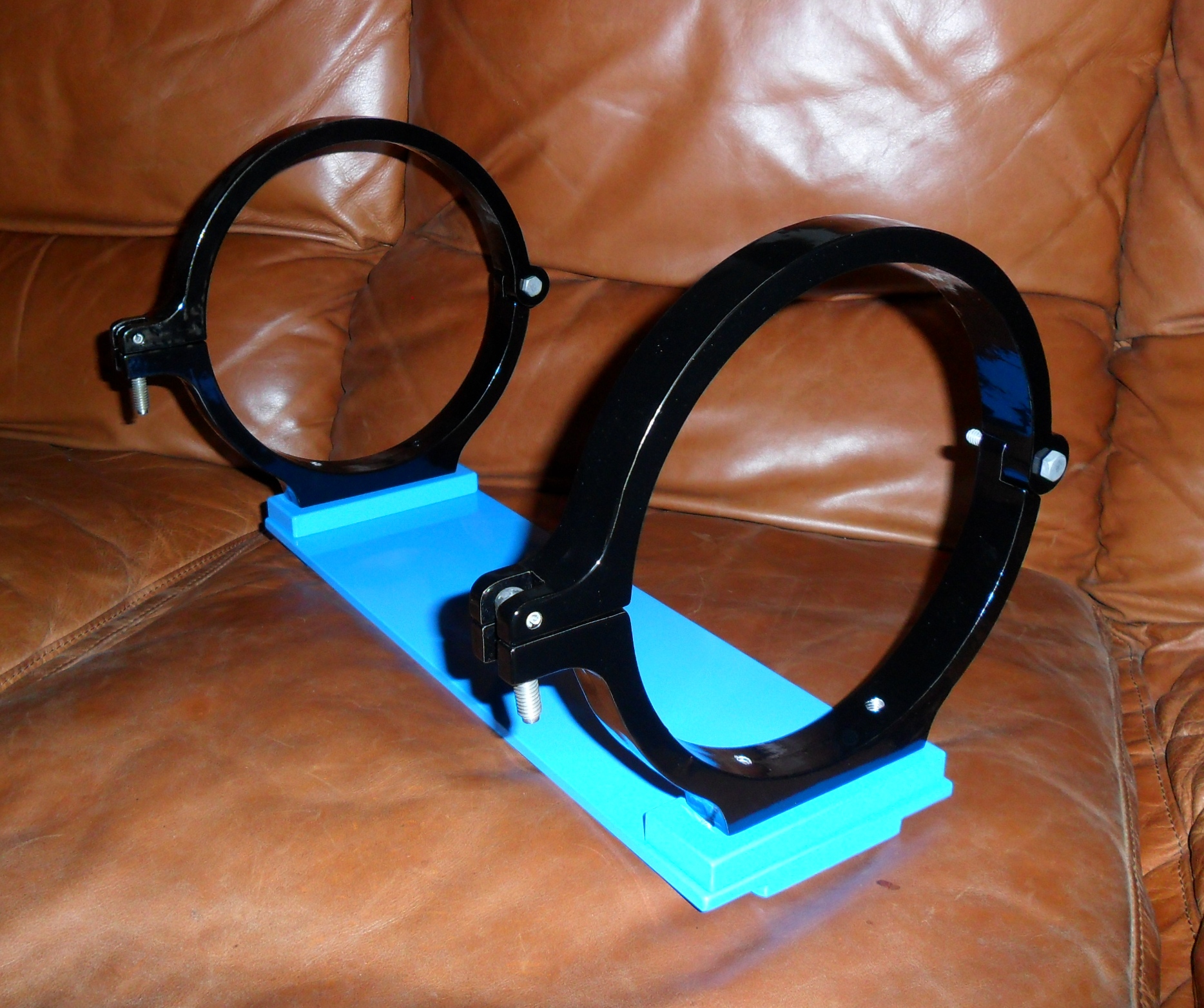

Completed Custom Dovetail Plate and Cradle Rings assembly - 10 (Click to see an enlarged image.)


The photo above shows the two (2) 'cradle ring/ adapter plate' assemblies installed onto the custom dovetail plate. The completed assembly looks spectacular! Once this unit is connected to the Losmandy G11 EQ and the OTA cradled in its rings, the Jaegers 6" f/10 "Gelinda J. Dawson" refractor telescope is going to almost look as beautiful as the lady it is name in honor of.

It is now time to install the felt liner to the inside surfaces of the cradle rings.
