Jaegers 6" f/10 "GJD" OTA Construction - Cradle Rings, Adapter Plates & Dovetail Plate - 2


Custom made Losmandy Style D-Mount Dovetail Plate, Cradle Ring Adapters test fit and Cradle Rings - 4 (Click to see an enlarged image.)

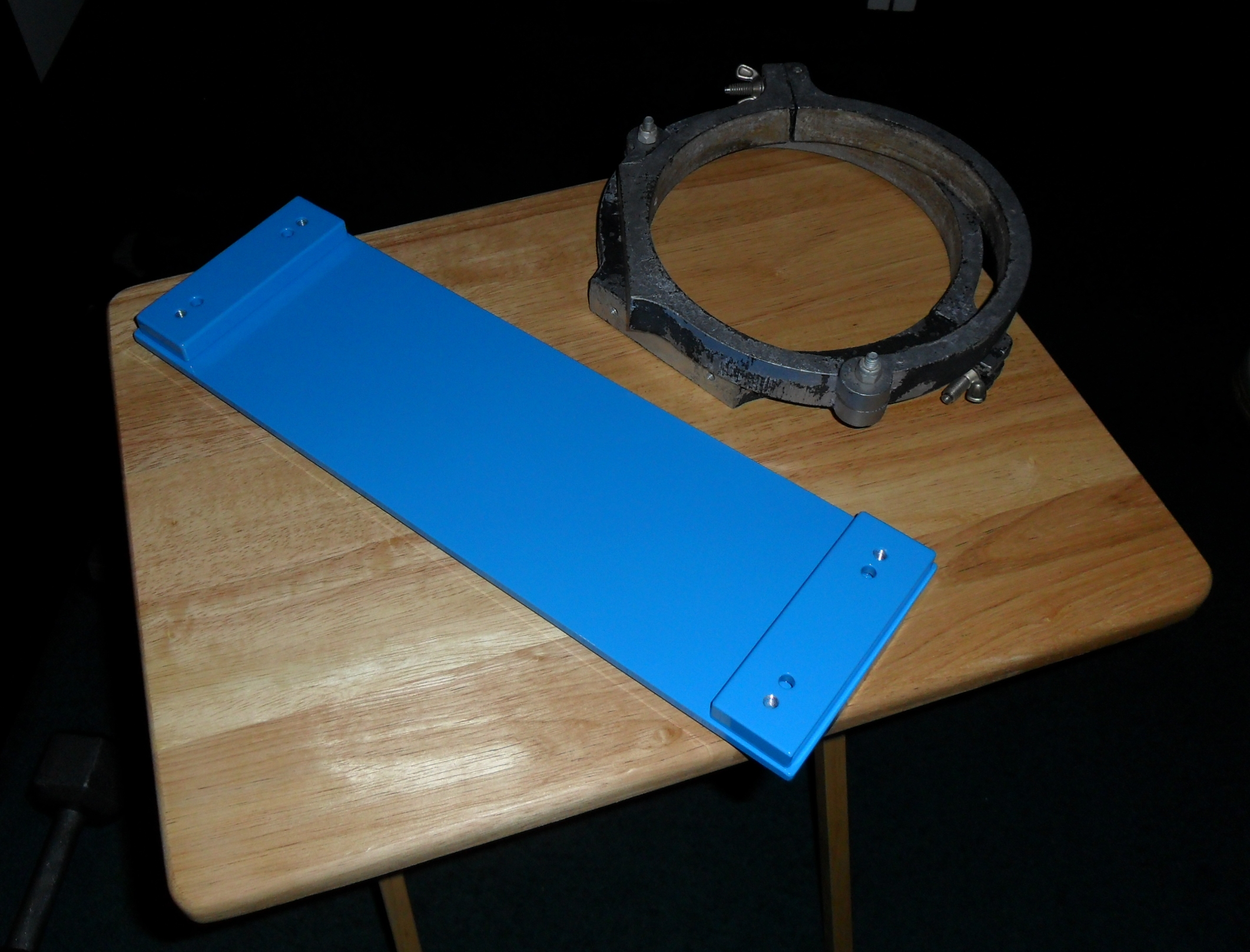

This picture shows the adapter plates place atop the 16" x 5" custom dovetail plate to show where they will be attached, along with the cradle rings still in need of a fresh new finish. When the cradle rings have been returned from powder coating, the adapter plates will be mounted to them first, before attaching the cradle ring-adapter plate assemblies to the dovetail plate.
