North Star II Field Tripod Construction - Fabrication of the Faceplates 7

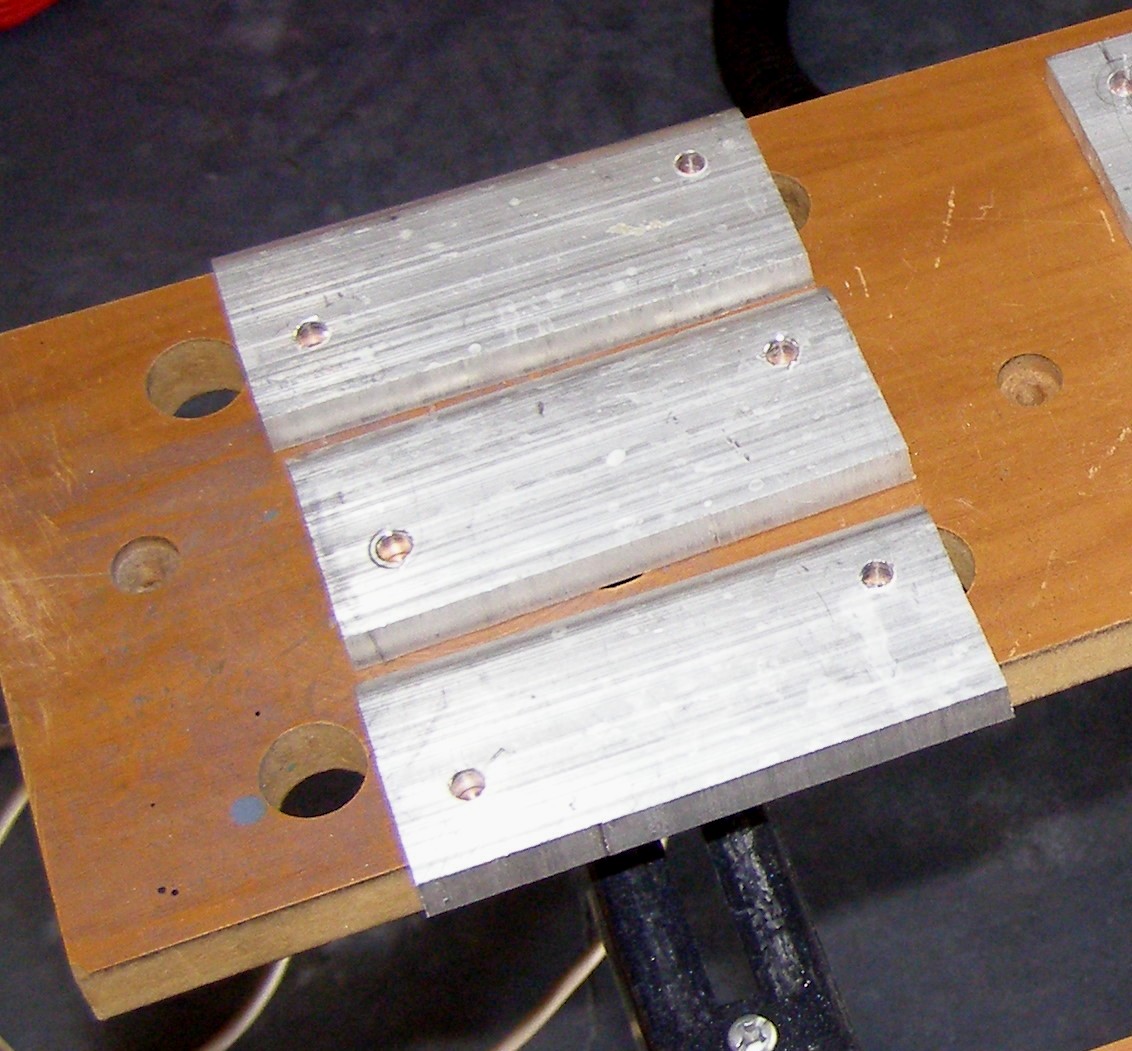

The three faceplates used opposite the accessory tray hinges of the North Star II field tripod... (Click for enlarged view)


The three small faceplates cut out and drilled. Only three will be needed since they will be mounted to the outside surface of the "outer main leg supports" opposite the accessory tray hinges - one per corner or leg. Like the large faceplates they will have their edges chamfered to reduce the chance of injury. Sanding and buffing will follow prior to painting.
