North Star II Field Tripod Construction - Accessory Tray Assembly 7

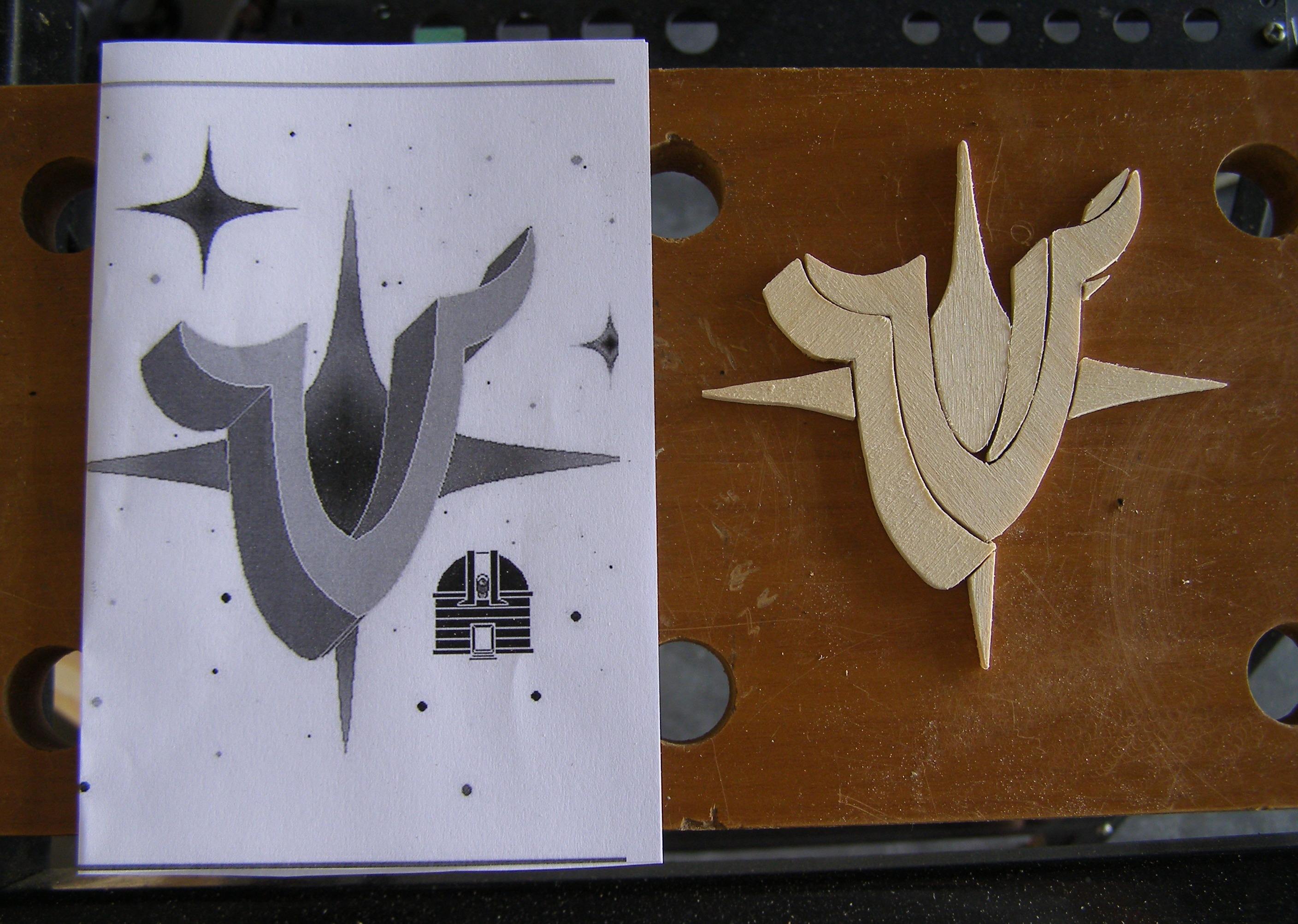

VSC Emblem parts cut out from 1/8" birch plywood and test fitted against printed copy... (Click for enlarged view)


Though it may seem very meticulous, it really did not take much time to cut out the individual pieces of 1/8" plywood to make the VSC emblem. Basically all I did was cut the pieces from a sheet like the one on the left to use them as templates and trace them onto the plywood and carefully cut them out. Now lets look at the emblem a bit closer in our next slide.
