North Star II Field Tripod Construction - Panhead Sections Traced 2

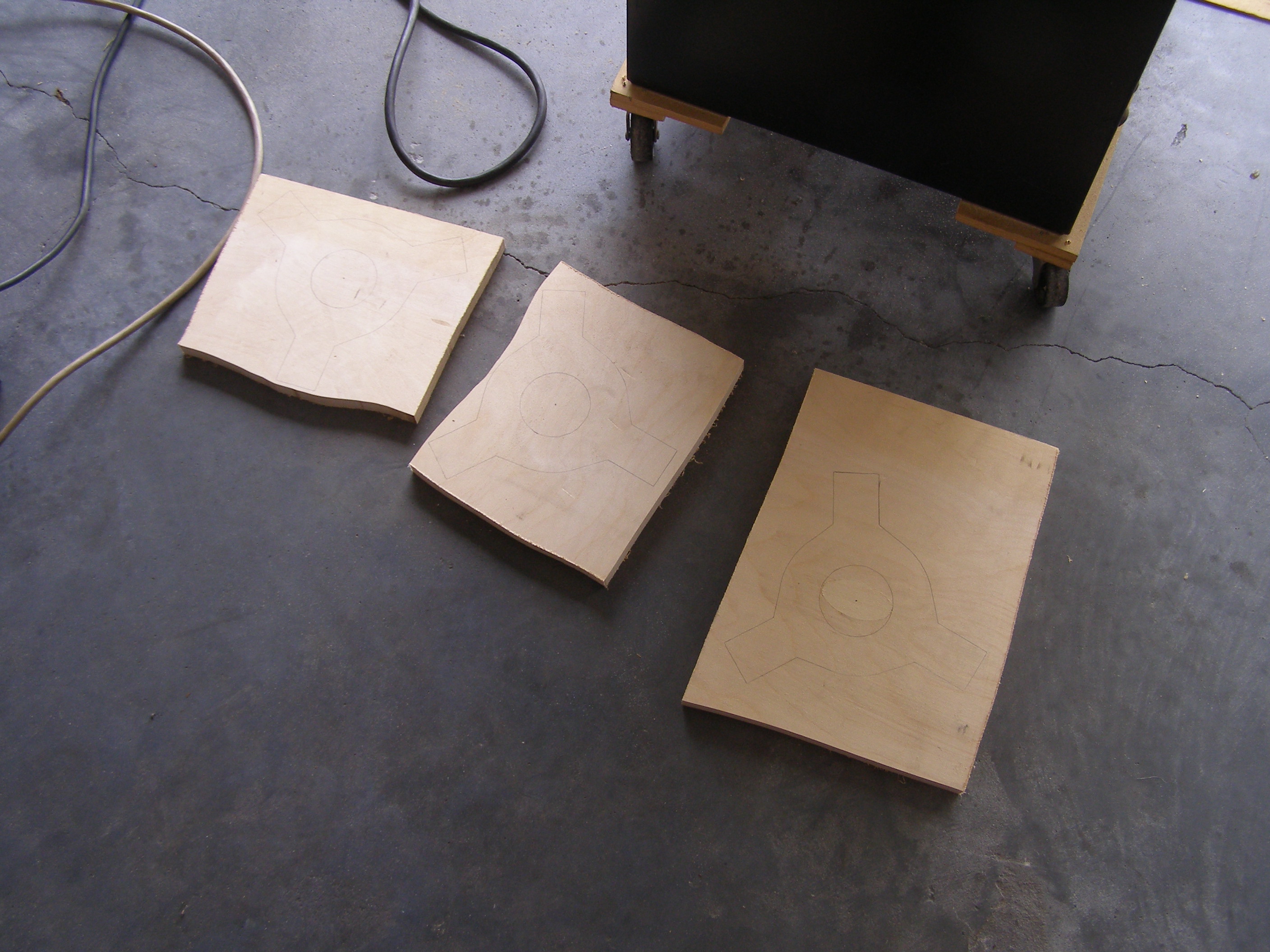

Piece of 3/4" cabinet-grade plywood cut into three sections before final cutting and trimming... (Click for enlarged view)


Here are the three sections that will make up the panhead rough cut in preparation for final cutting and trimming on the band saw.
