Jaegers 6" f/10 "GJD" OTA Construction - Knife-Edge Baffles (first baffle ready for knife-edge)

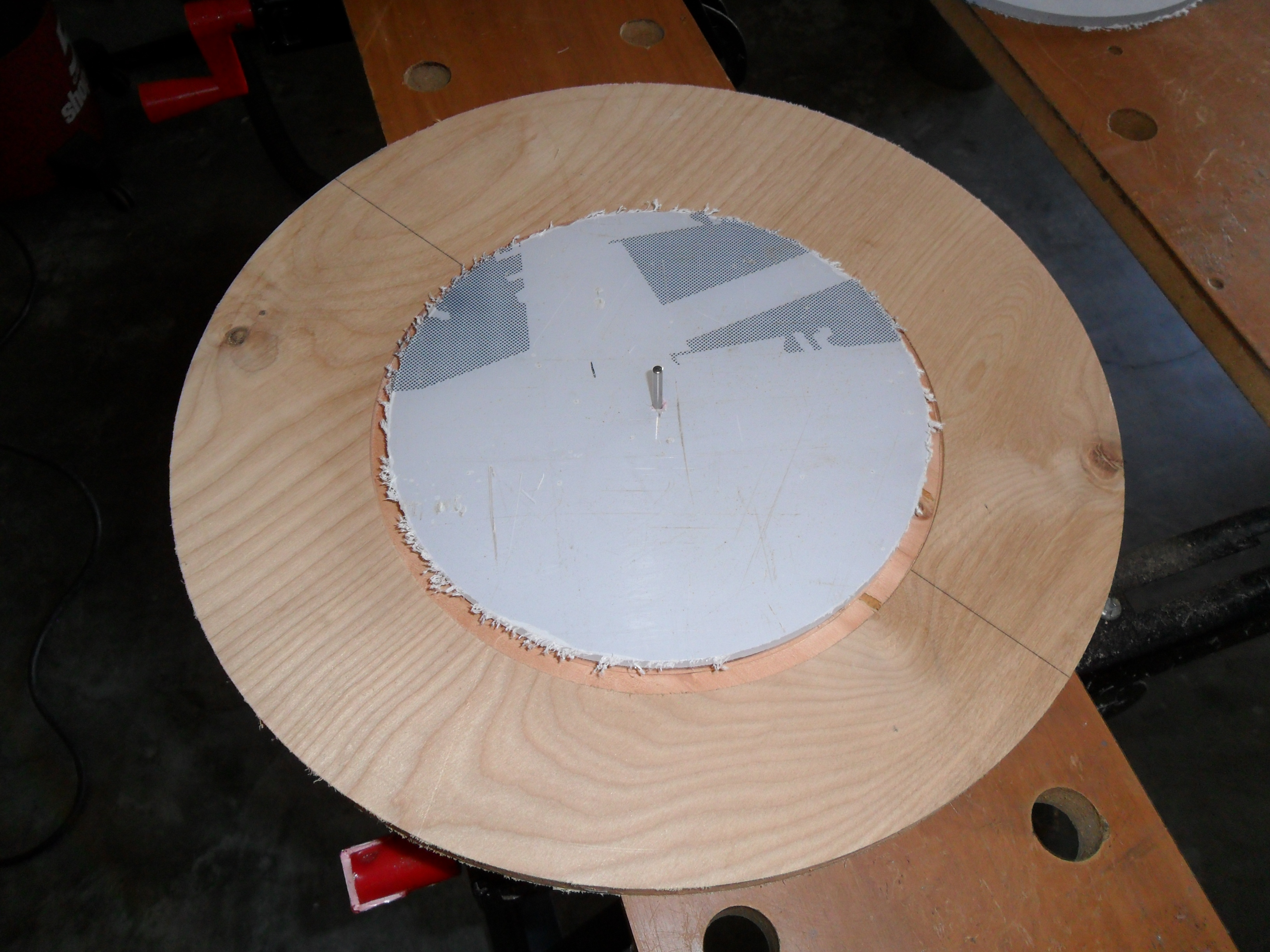

One of the baffles reloaded onto the plywood substrate in preparation to receive the knife-edge - 12 (Click to see an enlarged image.)


Reloaded on the 1/8" pin of the sacrificial piece is the first baffle in preparation to have its knife-edge cut. I will be cutting the smallest knife-edge circle in this one. Thereafter, I will progressively increase the size of the knife-edge in each baffle based on the pre-calculated measurements I arrived at in the creation of the ray trace.
