Jaegers 6" f/10 "GJD" OTA Construction - OTA Assembly (spacer template place over flint)

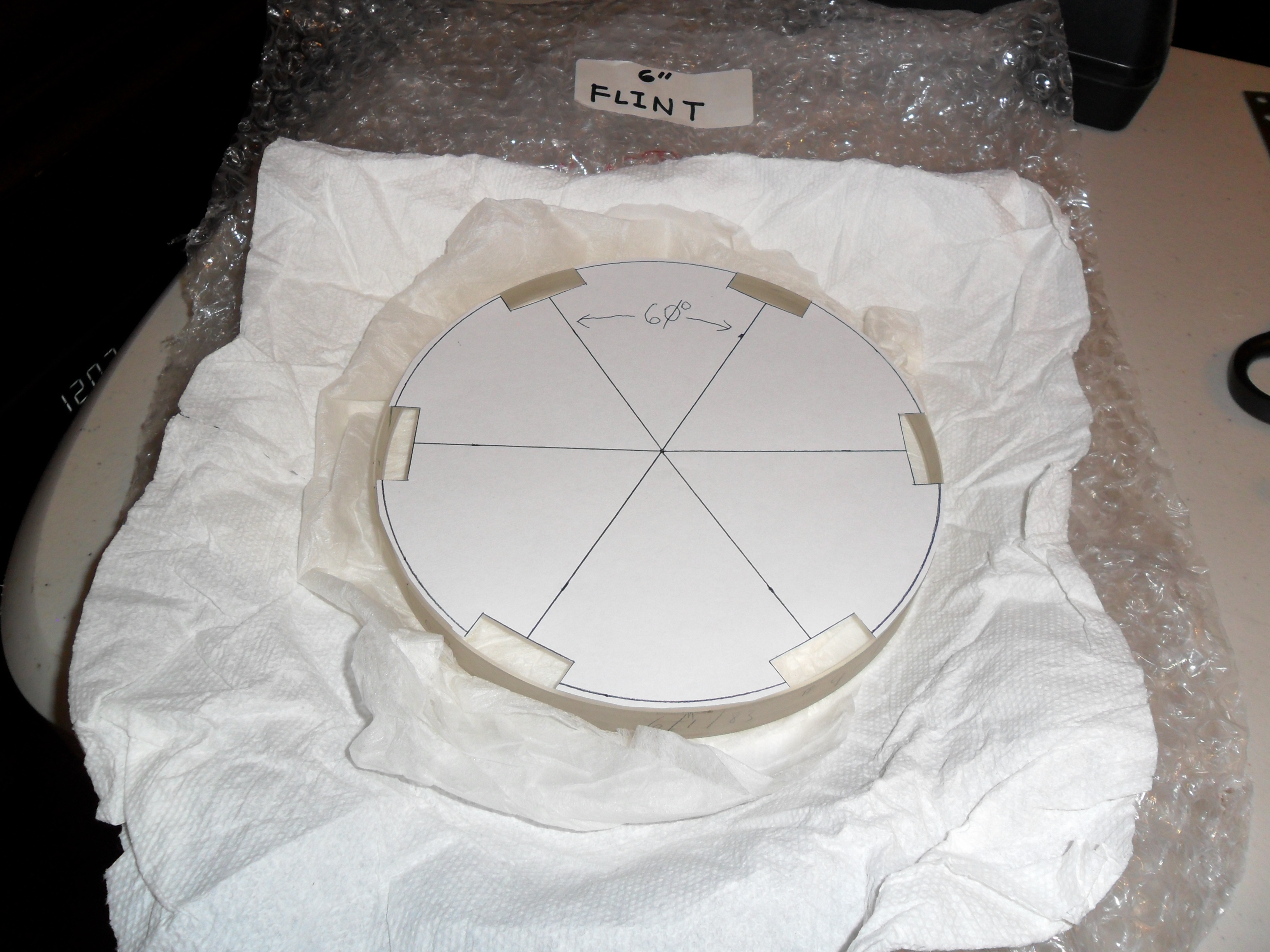

6" inch f/10 Jaegers Objective flint element with spacer template - 22 (Click to see an enlarged image.)


Getting back to the process of installing the aluminum spacer tabs for air spacing the Jaeger6" f/10 objective lens, in this photo the template has been placed over the flint element as it continues to rest on its bed of lens paper.
