Jaegers 6" f/10 "GJD" OTA Construction - Knife-Edge Baffles (up-cut bit depth of cut setting)

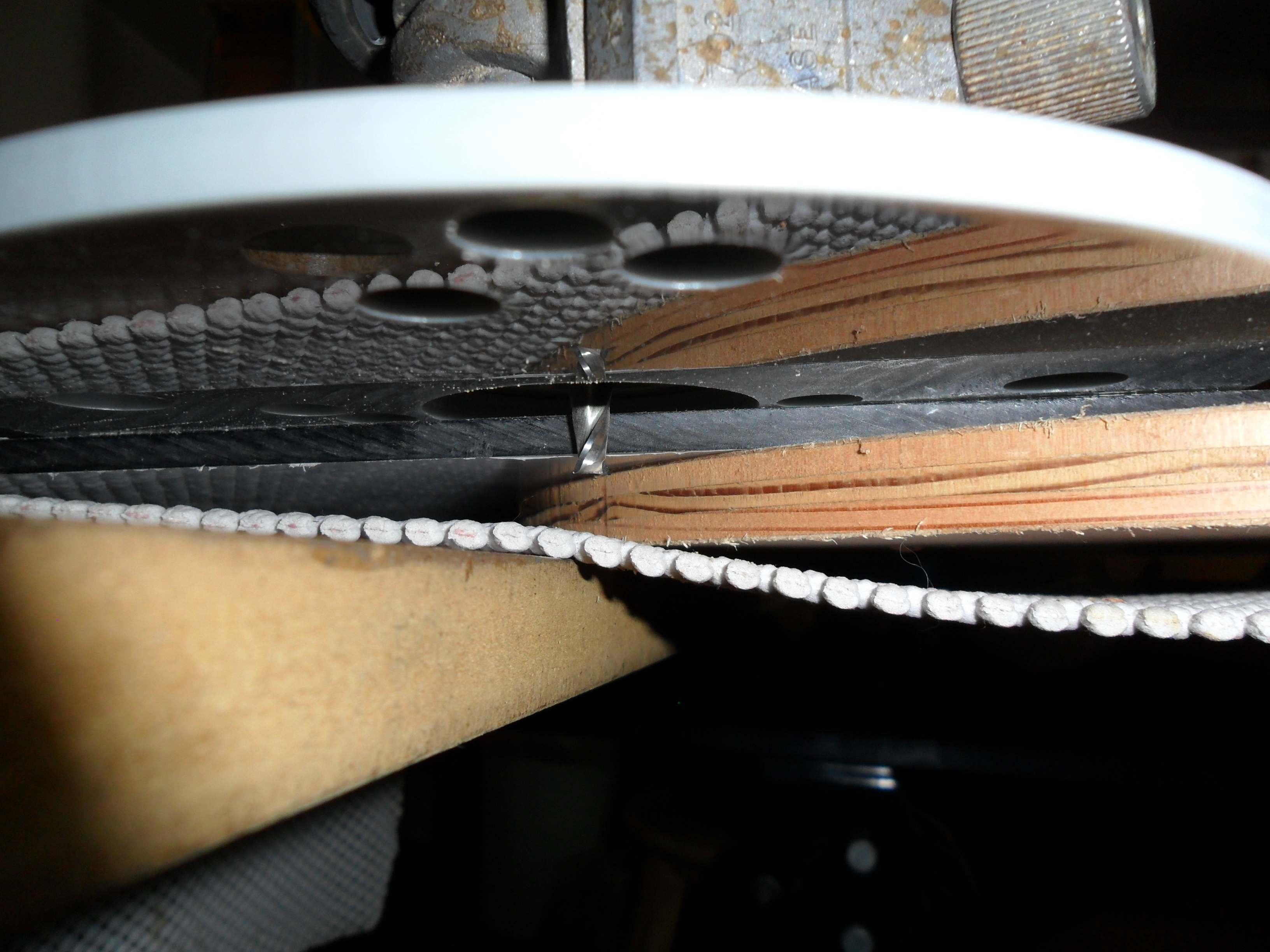

Setting the cut depth of the 1/4" up-cut router bit for cutting out the baffles - 7 (Click to see an enlarged image.)


As viewed from beneath the router and circle jig setup, the Bosch laminate trimmer/ router was placed at the edge of the sheet of polycarbonate allowing me to adjust the depth of cut for the bit. A cut depth of about 3/8" will sufficiently and cleanly cut out the 1/4" four (4) 6.7" baffle disks on top of the sacrificial circle of wood.
