Jaegers 6" f/10 "GJD" OTA Construction - Dew Shield (sanded with 60-grit)

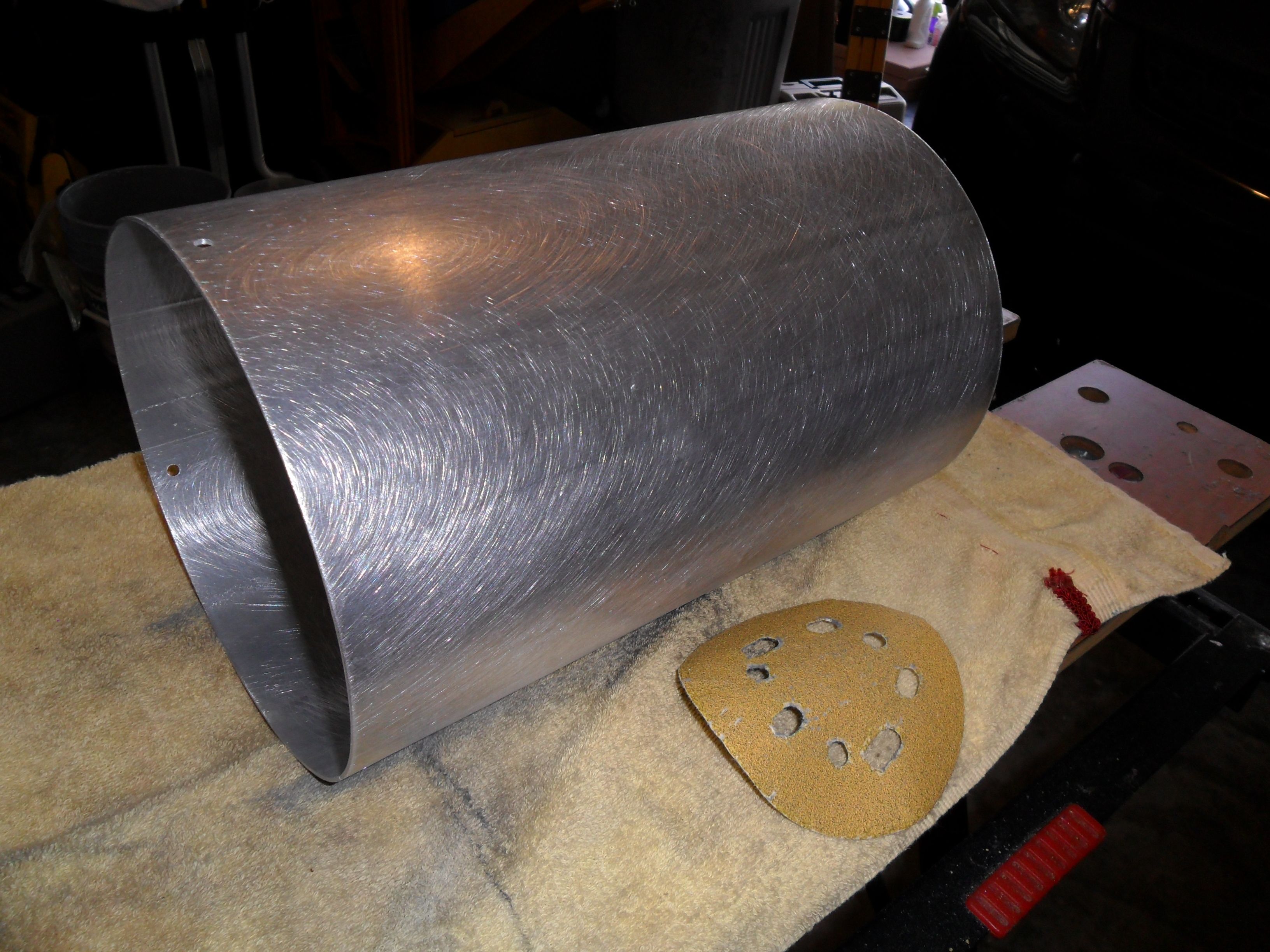

 60-grit sanding of Dew Shield - 3 (Click to see an enlarged image.)



Sanding of the dew shield begins with the yellow 60-grit sanding pad you see in the picture above. This grit removed most of the manufacturing markings and thin oxidized coat. As you can see, quite a bit of aluminum residue was generated in the sanding process. The pad is typically used in a random orbital sander, but this time, as with the remaining grits, I will be doing all of the sanding by hand. This way I have better control resulting in a improved overall finish once the spray-on coatings are applied.

In sanding the inside and outside surfaces of the dew shield with the 60-grit pad, the surfaces took on an appearance that is reminiscent of 0000 steel wool. So more sanding at finer grits is needed...
