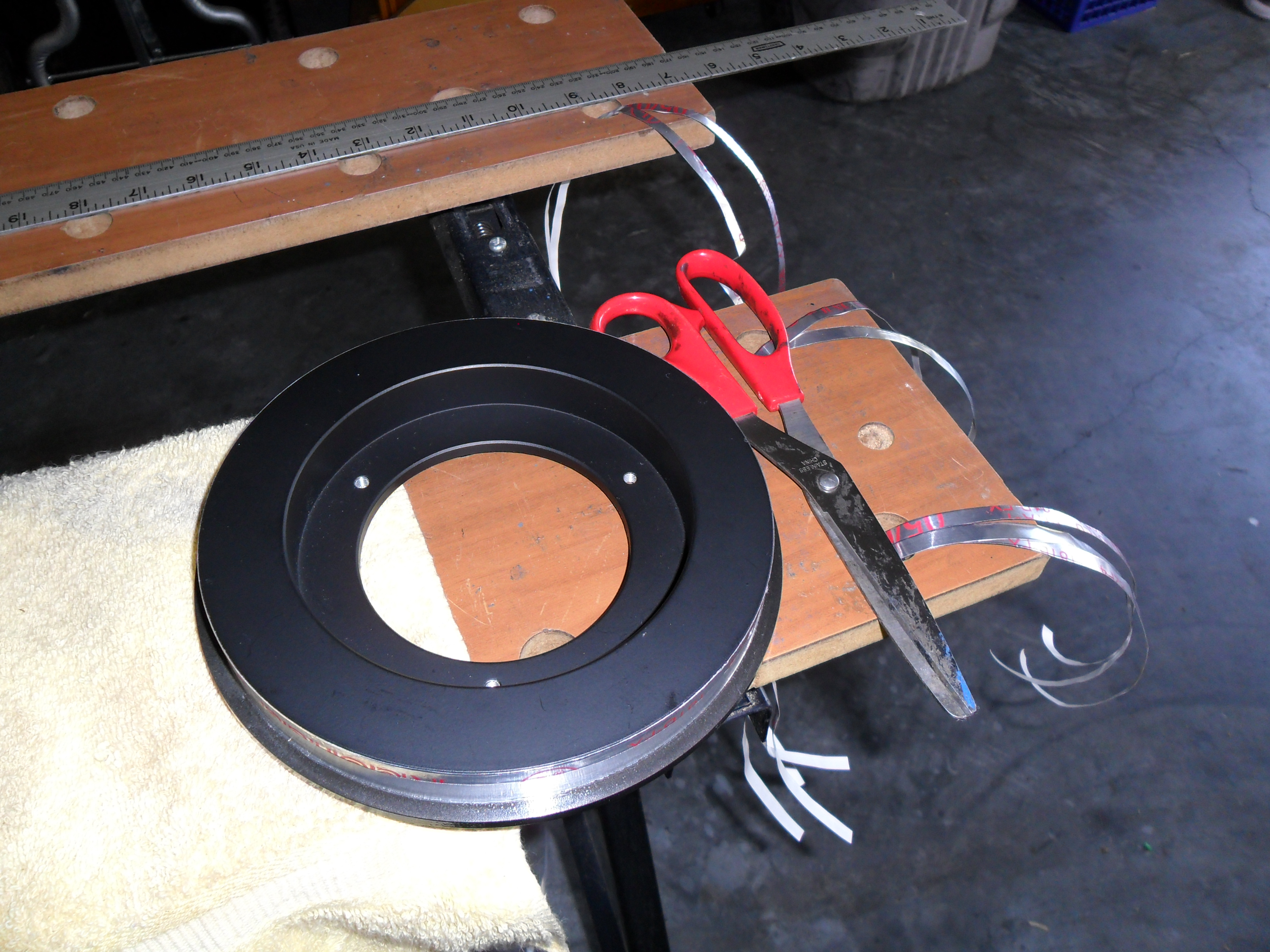

Here the aluminum duct tape has been cut into ten (10) strips, 22.5"
long in size, with several already installed to the end of the focuser
backplate's rim; a total of five (5) layers in all to this area. This
number of layers should be sufficient in filling in the one (1)
millimeter gap between the focuser backplate and main tube. I will add
the remaining five (5) strips on the opposite side of the threaded
mounting holes (used to attached the focuser backplate to the main tube) as
seen on the next page.
|
|
